DNS: Supersonic/Hypersonic Zero-Pressure-Gradient Plate Flows

Return to: Data from DNS - Intro Page

The data on this page were provided by L. Duan.

This DNS case is for 2-D supersonic/hypersonic turbulent boundary layers in zero pressure gradient. The DNS was run using an optimized seventh-order weighted essentially nonoscillatory (WENO) scheme that allows eddy shocklets to be captured and ensures numerical stability. No high enthalpy effects were included in the simulations. Several different Mach numbers (ranging from 2.5 to 14) and wall-to-recovery temperatures (ranging from 0.18 to 1.0) are included. Turbulent kinetic energy budget information is also available. These DNS results have been documented in the following publication:

• Zhang, C., Duan, L., and Choudhari, M., "Direct Numerical Simulation Database for Supersonic and Hypersonic Turbulent Boundary Layers," AIAA Journal, Vol. 56, No. 11, 2018, pp. 4297-4311, http://dx.doi.org/10.2514/1.J057296.


DNS data are provided below. The fully-developed results are given as a function of z. Extensive README details are included at the top of each of the data files. (Note all files were updated on 10/19/2018.)

• M=2.50, T_w/T_r=1.0:
  • Statistics: M2p5_Stat.dat
  • TKE Budget: M2p5_TKEBudget.dat
• M=5.84, T_w/T_r=0.25:
  • Statistics: M6Tw025_Stat.dat
  • TKE Budget: M6Tw025_TKEBudget.dat
• M=5.86, T_w/T_r=0.76:
  • Statistics: M6Tw076_Stat.dat
  • TKE Budget: M6Tw076_TKEBudget.dat
• M=7.87, T_w/T_r=0.48:
  • Statistics: M8Tw048_Stat.dat
  • TKE Budget: M8Tw048_TKEBudget.dat

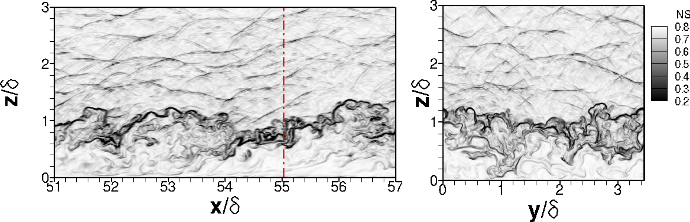

• M=13.64, T_w/T_r=0.18:
  • Statistics: M14Tw018_Stat.dat
  • TKE Budget: M14Tw018_TKEBudget.dat

Return to: Data from DNS - Intro Page

Recent significant updates:
10/19/2018 - updated reference, fixed Mach number values, updated all data files
