Grids - Axisymmetric Transonic Bump Case

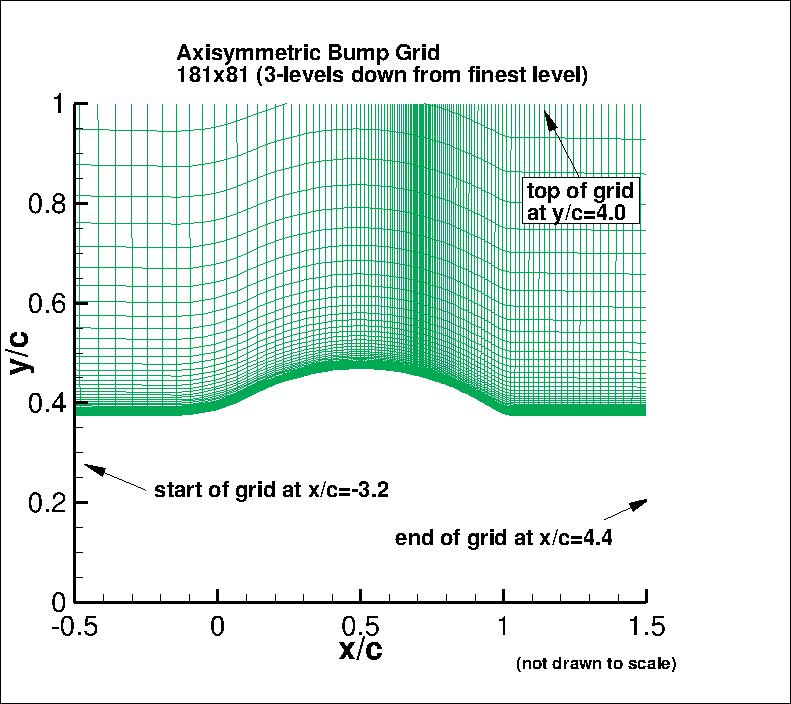

A series of 5 nested grids, nondimensionalized by chord, are provided. All grid files have been gzipped. Each coarser grid is exactly every-other-point of the next finer grid, ranging from the finest 1441 x 641 to the coarsest 91 x 41 grid. The following figure shows a portion of the 181 x 81 grid (3 levels down from the finest grid). The grid is not drawn to scale (the vertical direction has been expanded for clarity), and the full extent of the grid is not shown.

Note: be sure to use double precision when reading the grids!

STRUCTURED VERSIONS OF GRIDS

PLOT3D Files

The structured PLOT3D grids are given in two different ways, as 2-D grids (x-y plane) or as 3-D axisymmetric grids (two planes rotated through 1 deg from each other; one plane rotated 1 deg from the x-z plane). You may use whichever is more convenient for your particular application. If you get the 2-D grid version, then you must create an axisymmetric grid from it on your own.

Format for the structured 2D grids is PLOT3D-type, formatted, MG, 2D (nbl=1) - note that you must use double precision when reading! :

      read(2,*) nbl
      read(2,*) (idim(n),jdim(n),n=1,nbl)
      do n=1,nbl
        read(2,*) ((x(i,j,n),i=1,idim(n)),j=1,jdim(n)),
     +            ((y(i,j,n),i=1,idim(n)),j=1,jdim(n))
      enddo

Download the 2-D version of the grids in PLOT3D format here:

• (2-D) 1441x641 (gzipped) (12.9 MB)
• (2-D) 721x321 (gzipped) (3.1 MB)
• (2-D) 361x161 (gzipped) (< 1 MB)
• (2-D) 181x81 (gzipped) (< 1 MB)
• (2-D) 91x41 (gzipped) (< 1 MB)

Format for the 2-rotated-plane structured 3D grid is PLOT3D-type, formatted, MG, 3D (nbl=1, and idim in this case is 2) - note that you must use double precision when reading! :

      read(2,*) nbl
      read(2,*) (idim(n),jdim(n),kdim(n),n=1,nbl)
      do n=1,nbl
        read(2,*) (((x(i,j,k,n),i=1,idim(n)),j=1,jdim(n)),k=1,kdim(n)),
     +            (((y(i,j,k,n),i=1,idim(n)),j=1,jdim(n)),k=1,kdim(n)),
     +            (((z(i,j,k,n),i=1,idim(n)),j=1,jdim(n)),k=1,kdim(n))
      enddo

Download the 3-D version of the grids in PLOT3D format here:

• (3-D) 2x1441x641 (gzipped) (31.1 MB)
• (3-D) 2x721x321 (gzipped) (7.9 MB)
• (3-D) 2x361x161 (gzipped) (2 MB)
• (3-D) 2x181x81 (gzipped) (< 1 MB)
• (3-D) 2x91x41 (gzipped) (< 1 MB)

If desired, example Neutral Map Files associated with 3-D version of the grids are given here (these files specify grid indices associated with each boundary condition - see The Neutral Map File):

• Neutral Map File for (3-D) 2x1441x641
• Neutral Map File for (3-D) 2x721x321
• Neutral Map File for (3-D) 2x361x161
• Neutral Map File for (3-D) 2x181x81
• Neutral Map File for (3-D) 2x91x41

UNSTRUCTURED VERSIONS OF GRIDS

AFLR3 Files

The unstructured versions of the same 3-D grids are all given as AFLR3 (UGRID) files. Note that the BCs given for these files are for guidance only, and may not reflect the appropriate BCs needed for your application.

Download the unstructured AFLR3 grids (gzipped) here:

• (3-D) unstructured version of 2 x 1441 x 641 (gzipped) (51.8 MB)
• (3-D) unstructured version of 2 x 721 x 321 (gzipped) (12.8 MB)
• (3-D) unstructured version of 2 x 361 x 161 (gzipped) (3.2 MB)
• (3-D) unstructured version of 2 x 181 x 81 (gzipped) (< 1 MB)
• (3-D) unstructured version of 2 x 91 x 41 (gzipped) (< 1 MB)

All AFLR3 grids have the same mapbc file: bump_newaxi_all_website.mapbc.
