Grids - Axisymmetric Shock Wave Boundary Layer Interaction near M=7 Case

A series of 5 nested grids, in units of cm, are provided. All grid files have been gzipped. Each coarser grid is exactly every-other-point of the next finer grid, ranging from the finest 2-zone 321 x 401 and 321 x 401 to the coarsest 2-zone 21 x 26 and 21 x 26 grid. The following figure shows a portion of the 81 x 101 and 81 x 101 grid (2 levels down from the finest grid). Also note that for the experimental data, the wall-normal coordinate y' is defined such that y'=0 on the cylinder surface. However, in the CFD grid, y=0 represents the cylinder's axis of rotation, and the cylinder surface is at approximately y=10.15 cm). The simple transformation is given by: y' = y - 10.15.

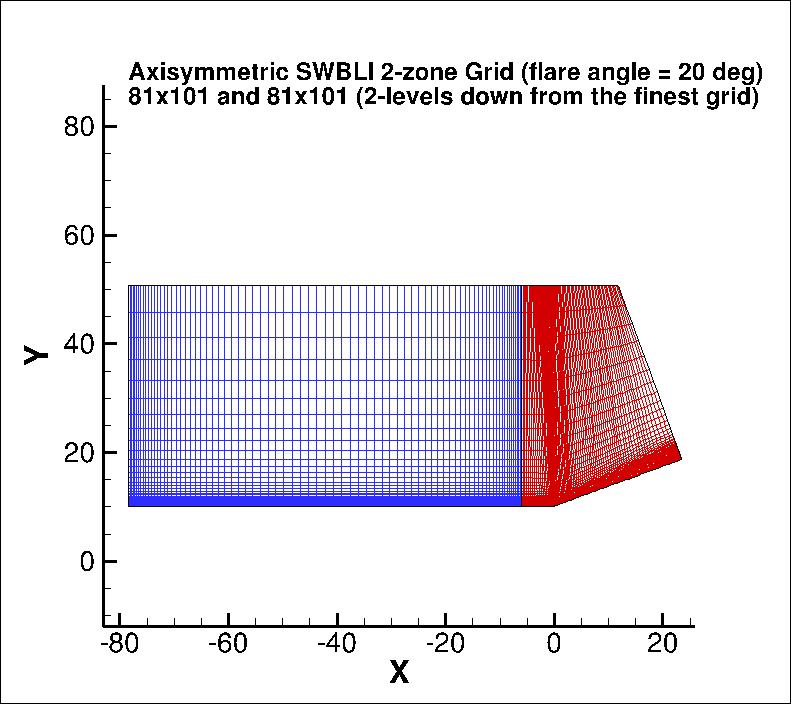

portion of Axisymmetric SWBLI grid

Note: be sure to use double precision when reading the grids!

STRUCTURED VERSIONS OF GRIDS

PLOT3D Files

The structured PLOT3D grids are given in two different ways, as 2-D grids (x-y plane) or as 3-D axisymmetric grids (two planes rotated through 1 deg from each other; one plane rotated +0.5 deg from the x-z plane, and the other plane rotated -0.5 deg from the x-z plane). You may use whichever is more convenient for your particular application. If you get the 2-D grid version, then you must create an axisymmetric grid from it on your own.

Format for the structured 2D grids is PLOT3D-type, formatted, MG, 2D (nbl=1) - note that you must use double precision when reading! :

      read(2,*) nbl
      read(2,*) (idim(n),jdim(n),n=1,nbl)
      do n=1,nbl
        read(2,*) ((x(i,j,n),i=1,idim(n)),j=1,jdim(n)),
     +            ((y(i,j,n),i=1,idim(n)),j=1,jdim(n))
      enddo

Download the 2-D version of the grids in PLOT3D format here:

(2-D) 2-zone 321x401 and 321x401 (gzipped) (2.3 MB)
(2-D) 2-zone 161x201 and 161x201 (gzipped) (< 1 MB)
(2-D) 2-zone 81x101 and 81x101 (gzipped) (< 1 MB)
(2-D) 2-zone 41x51 and 41x51 (gzipped) (< 1 MB)
(2-D) 2-zone 21x26 and 21x26 (gzipped) (< 1 MB)

Format for the 2-rotated-plane structured 3D grid is PLOT3D-type, formatted, MG, 3D (nbl=1, and idim in this case is 2) - note that you must use double precision when reading! :

      read(2,*) nbl
      read(2,*) (idim(n),jdim(n),kdim(n),n=1,nbl)
      do n=1,nbl
        read(2,*) (((x(i,j,k,n),i=1,idim(n)),j=1,jdim(n)),k=1,kdim(n)),
     +            (((y(i,j,k,n),i=1,idim(n)),j=1,jdim(n)),k=1,kdim(n)),
     +            (((z(i,j,k,n),i=1,idim(n)),j=1,jdim(n)),k=1,kdim(n))
      enddo

Download the 3-D version of the grids in PLOT3D format here:

(3-D) 2-zone 2x321x401 and 2x321x401 (gzipped) (4.7 MB)
(3-D) 2-zone 2x161x201 and 2x161x201 (gzipped) (1.2 MB)
(3-D) 2-zone 2x81x101 and 2x81x101 (gzipped) (< 1 MB)
(3-D) 2-zone 2x41x51 and 2x41x51 (gzipped) (< 1 MB)
(3-D) 2-zone 2x21x26 and 2x21x26 (gzipped) (< 1 MB)

If desired, example Neutral Map Files associated with 3-D version of the grids are given here (these files specify grid indices associated with each boundary condition - see The Neutral Map File):

Return to: Axisymmetric Shock Wave Boundary Layer Interaction near M=7 Case Intro Page

Return to: Turbulence Modeling Resource Home Page

Recent significant updates:
04/29/2022 - radius stated as 10.15 cm (more digits than the original 10 cm)
