2D Fully-Developed Channel Flow at High Reynolds Number Validation Case
SSTm Model Results
Link to SSTm equations
Previously on this page the results were reported as SST solutions, but more properly they should be referred
to as SSTm. Essentially no difference is expected.

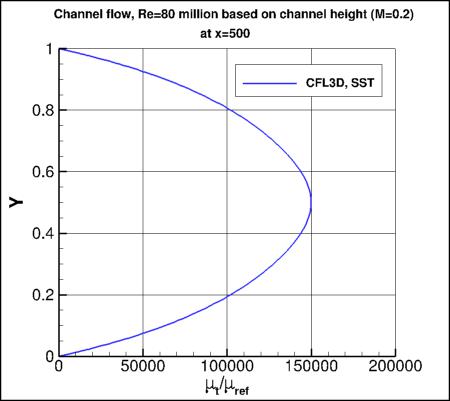

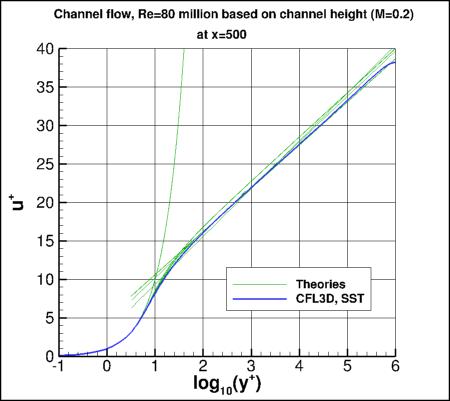

Above SSTm results are from CFL3D on the finest 161x513 grid.
CFL3D used freestream turbulence intensity=0.039% and freestream turbulent viscosity (relative to laminar)=0.009
(additional details can be found in the CFL3D User's Manual, Appendix H).
Please read note 5 on Notes on running CFD page.

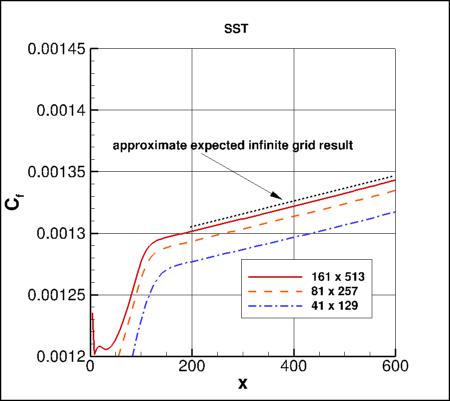

Note that these are compressible code results; results will be somewhat different for incompressible codes.
In fact, for incompressible flow, the Cf and v*/Uref should become constant (moving downstream) rather
than slowly linearly increasing as shown here.

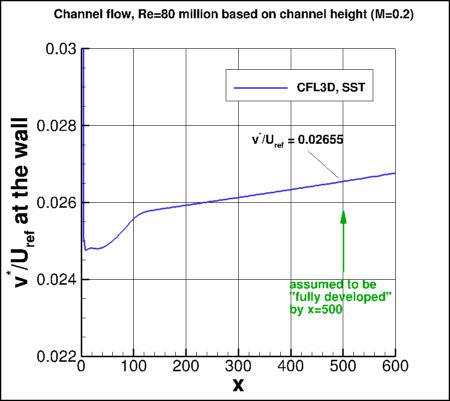

Note that the quantity v* (as defined in
White, F. M., Viscous Fluid Flow, McGraw-Hill, New York, 1974, pp. 471-474) is often referred to as u_tau.

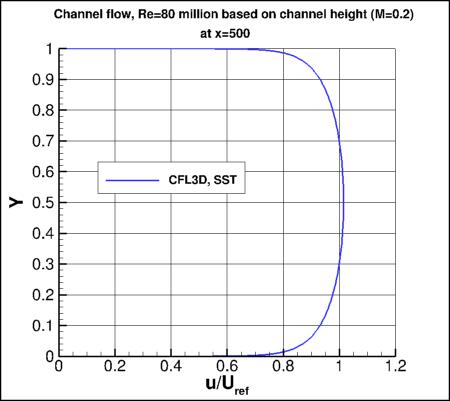

Note also that Uref used in the above plots is not bulk velocity, but rather
the velocity at the reference position upstream where M=0.2.
The density (used to compute Cf) is also referenced there.
Results are assumed to be sufficiently "fully developed" by

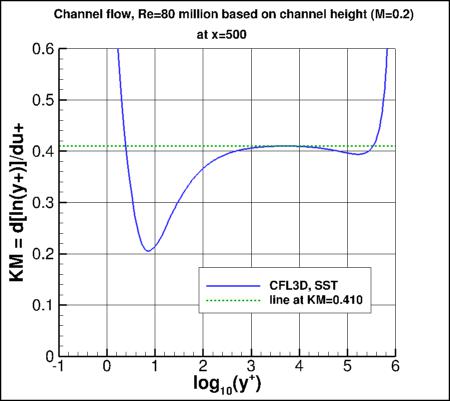

x=500. Looking at the "Karman Measure" (KM), the value of
"kappa" produced by this turbulence model is close to 0.410 over much of the log layer.

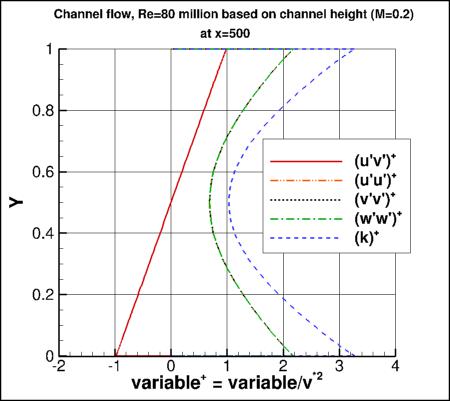

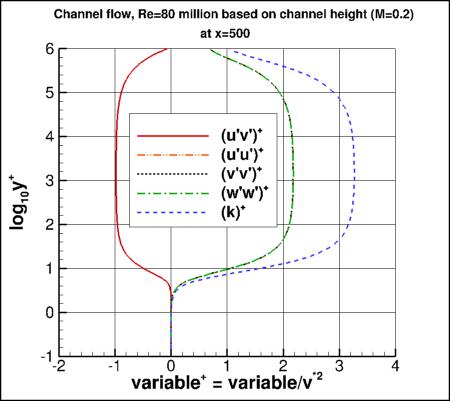

Because SSTm is a linear (Boussinesq) model, there is essentially no separation between u'u', v'v', and w'w'.
CFL3D results are given here:
sst_cf_vs_x_cfl3d.dat,
sst_utau_vs_x_cfl3d.dat,
sst_u_cfl3d.dat,
sst_u+y+KM_cfl3d.dat,
sst_mut_cfl3d.dat,
sst_plus_cfl3d.dat.
A typical CFL3D input file is:
sst_cfl3d_typical.inp.
