DNS: Boeing Gaussian Bump at Two Reynolds Numbers

Return to: Data from DNS - Intro Page

The data on this page were provided by Ali Uzun.

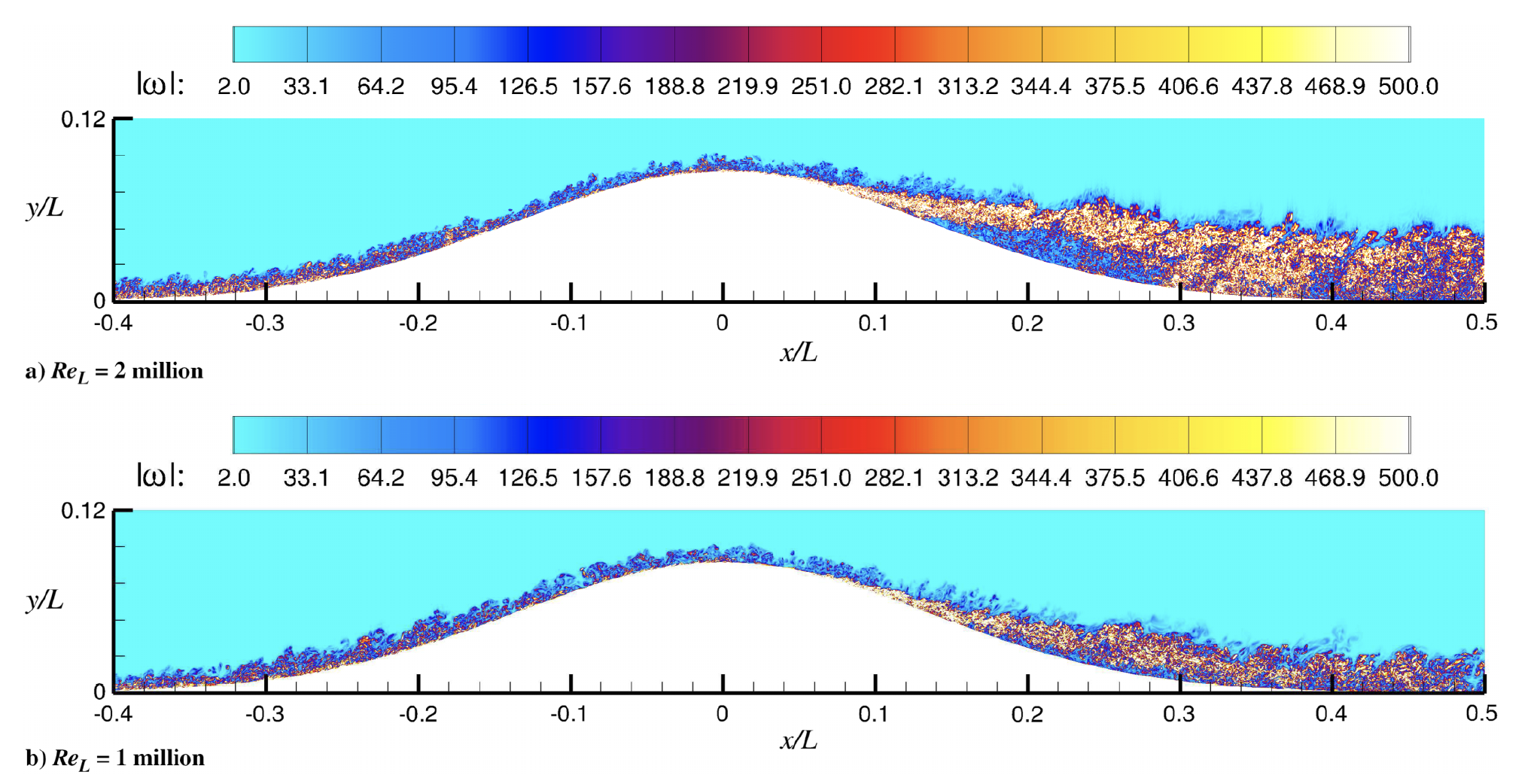

These DNS cases use the so-called "Boeing Speed Bump" geometry. They were run using compressible direct numerical simulation (DNS) codes. This is a 2-D "slice" of the full experimental configuration, documented on the page: Exp: Smooth Body Separation Experiment (SBSE) - Boeing Gaussian Bump with Error Function Shoulders. These DNS results are at two Reynolds numbers of 2 million and 1 million based on width of the experimental model (L), and have been documented in the following publications:

• Uzun, A. and Malik, M. R., "High-Fidelity Simulation of Turbulent Flow Past Gaussian Bump", AIAA Journal, Vol. 60, No. 4, April 2022, pp. 2130-2149, https://doi.org/10.2514/1.J060760.
• Uzun, A., and Malik, M. R., "Simulation of a Turbulent Flow Subjected to Favorable and Adverse Pressure Gradients," Theoretical and Computational Fluid Dynamics, Vol. 35, No. 3, 2021, pp. 293-329, https://doi.org/10.1007/s00162-020-00558-4.

DNS data are provided below.

• README.txt
• Re = 2 million:
  • SpeedBump-ReL-2M-Cf.dat
  • SpeedBump-ReL-2M-Cp.dat
  • SpeedBump-ReL-2M-Statistics.dat.gz, gzipped file (312 MB)
• Re = 1 million:
  • SpeedBump-ReL-1M-Cf.dat
  • SpeedBump-ReL-1M-Cp.dat
  • SpeedBump-ReL-1M-Statistics.dat.gz, gzipped file (209 MB)
