Exp: NASA Juncture Flow (JF) - Turbulent Symmetric Wing Experimental Data

Return to: Exp: NASA Juncture Flow - Intro Page for Turbulent Symmetric Wing

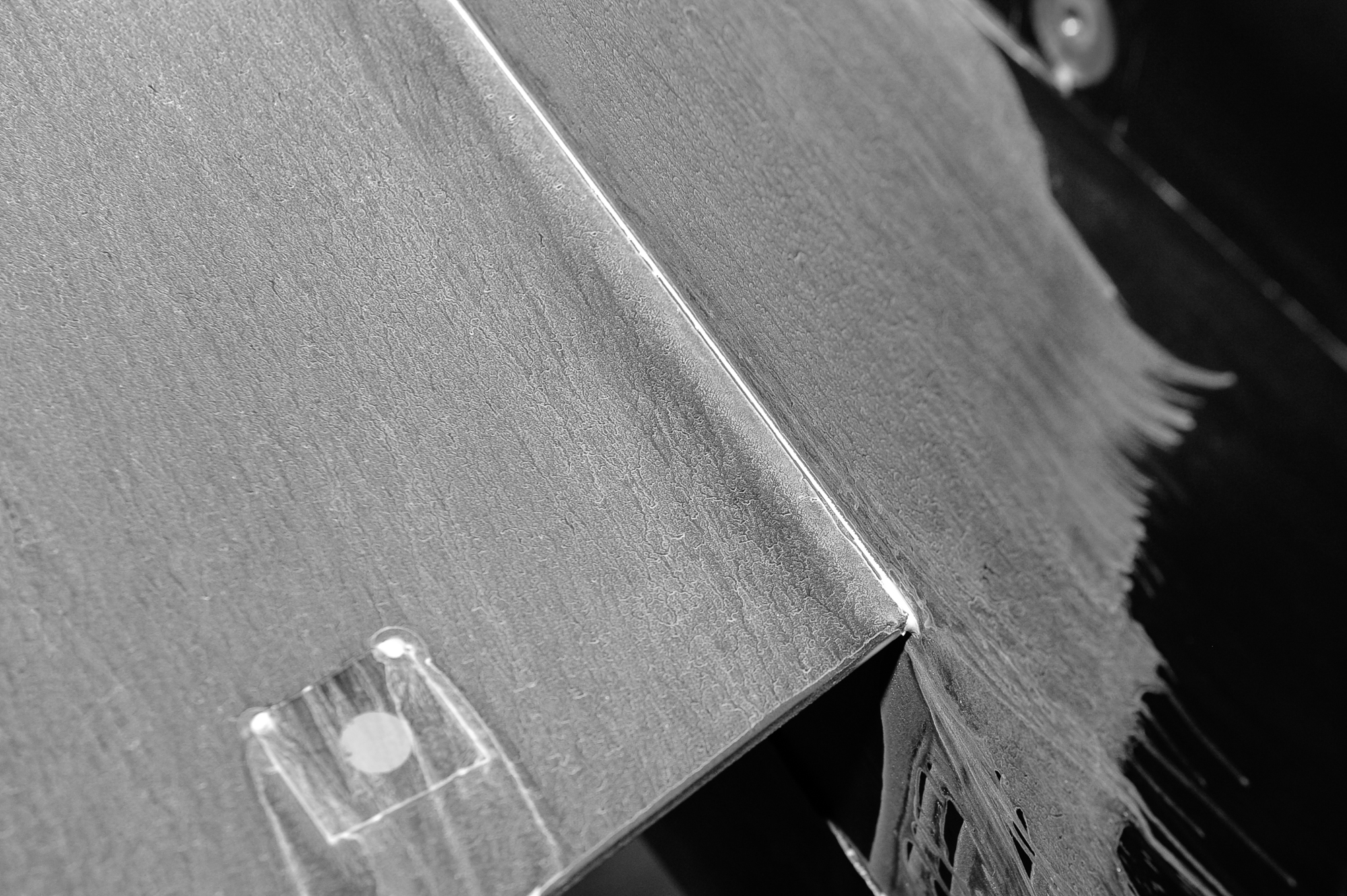

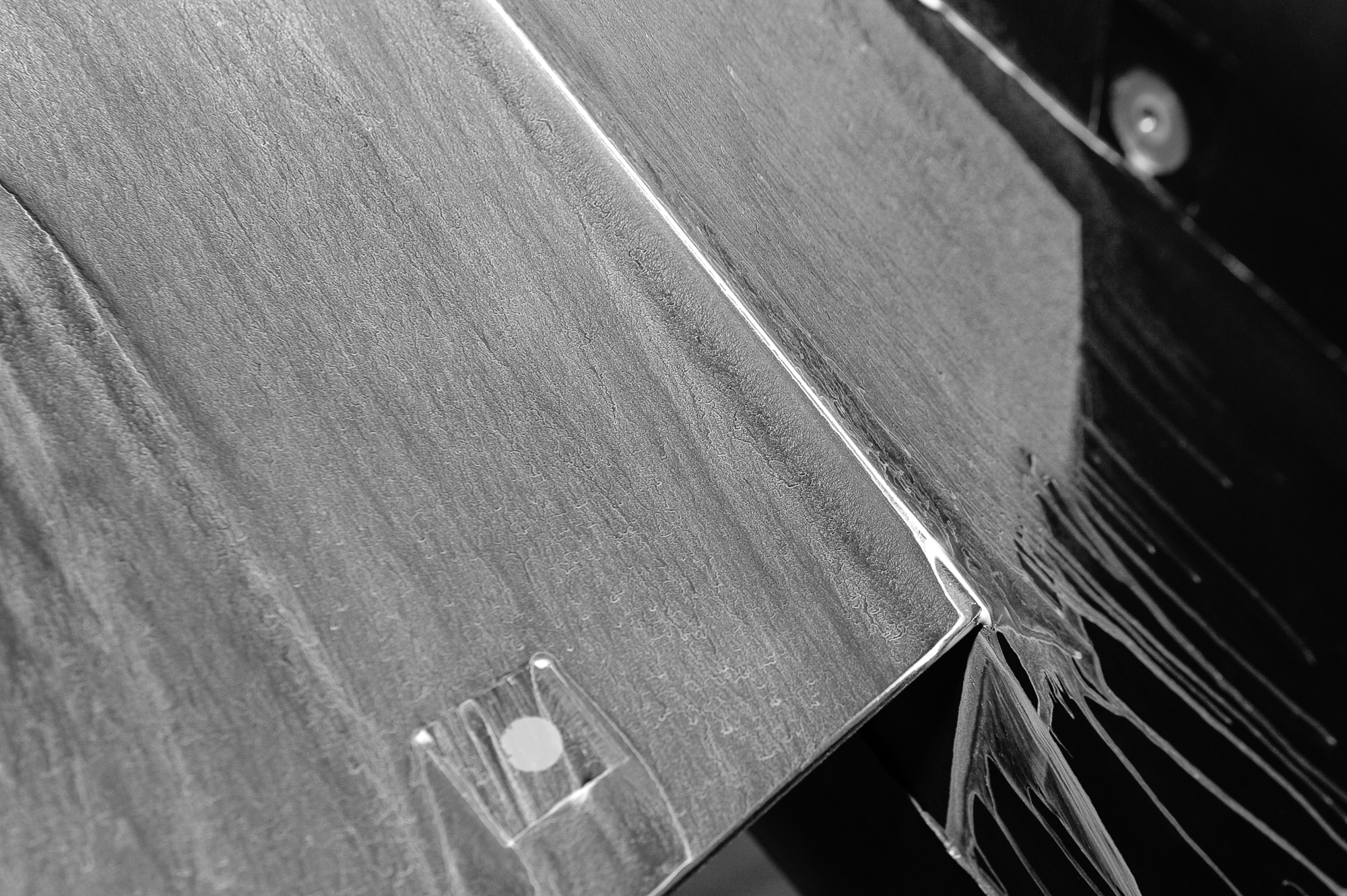

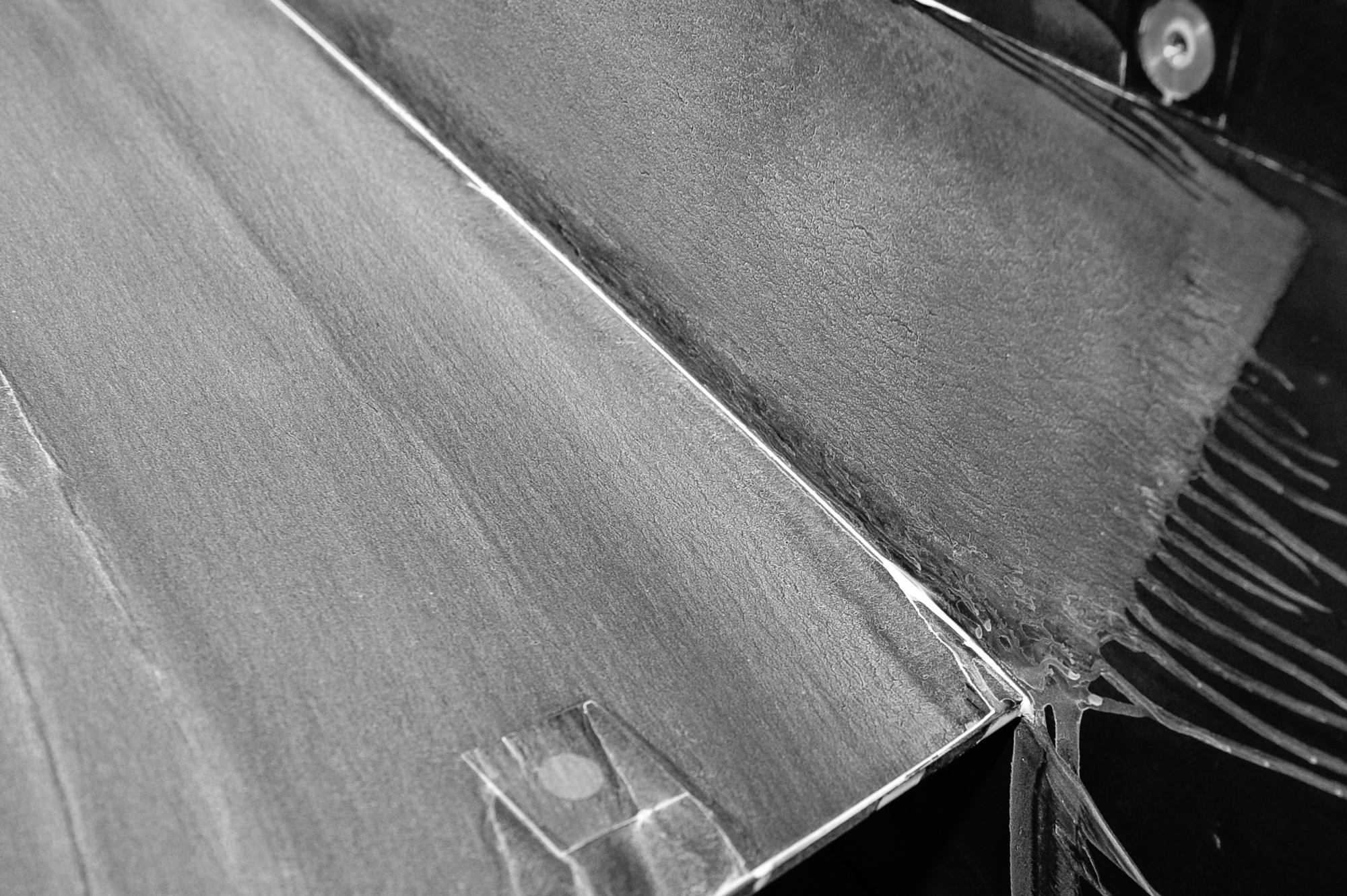

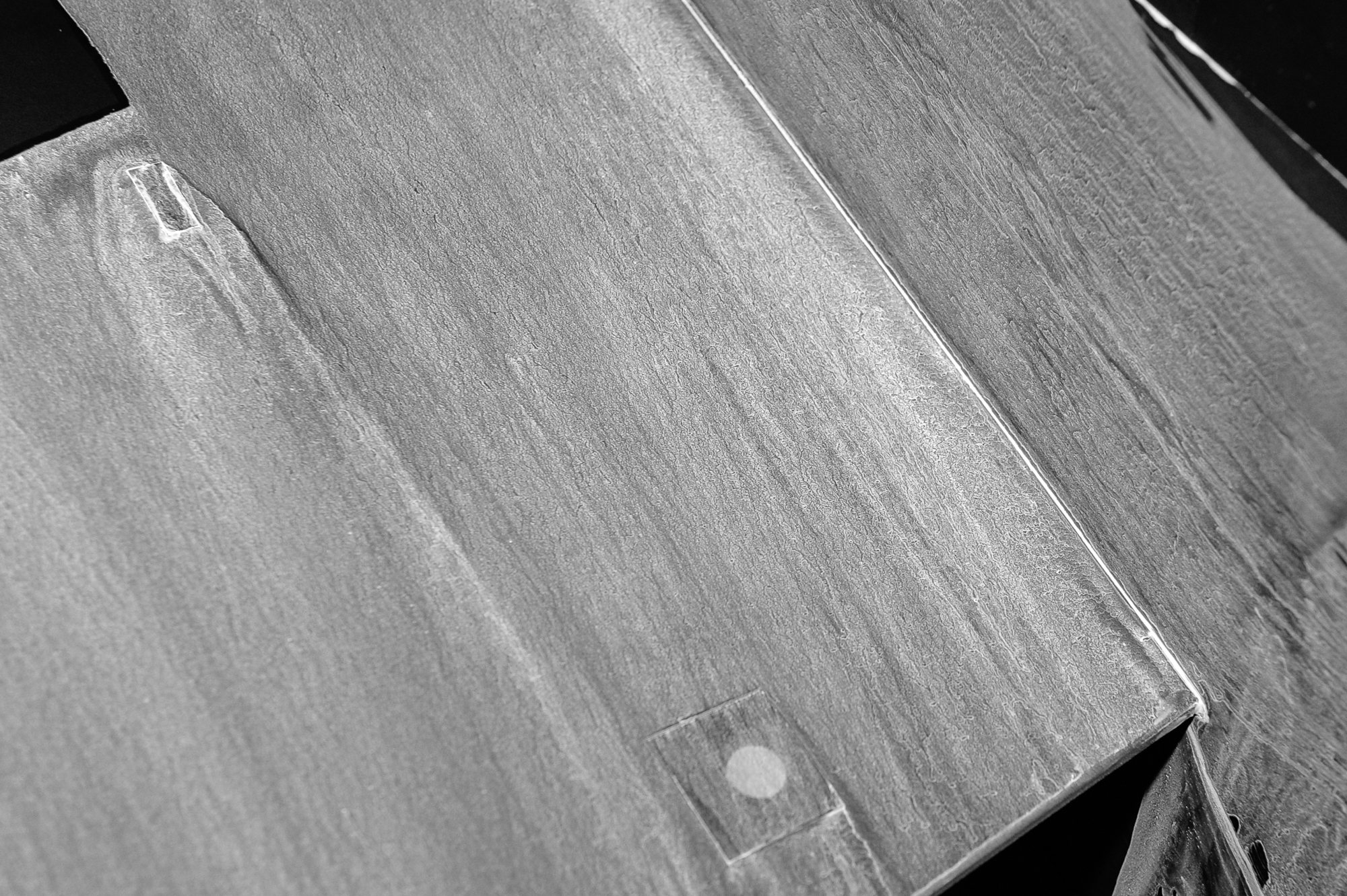

Oil Flow Photos and Estimated Separation Sizes:

• Oilflow_symm.tar.gz (gzipped tar file, 11.7 MB)
• bubble_size_exp_sym_withhorn.dat
• Note 1: Oil flow visualizations are generally regarded as qualitative in nature, so caution must be exercised when making use of the approximate measurements of mean corner-flow separation length and width.
• Note 2: In the experiment, the separation length was measured at the fuselage along the wing from the trailing edge to the approximate location of streamline departure. This is NOT the same as delta x, because the wing surface does not align with the x-axis. Roughly, L = (delta x)/[cos(9.9 deg)]. The separation width was measured along the trailing edge of the wing from the fuselage to the approximate location of the fluid (at the trailing edge) that emanated from the apex of separation. For the symmetric wing inboard of the crank, W = (delta y)/[cos(9.76 deg)] because the trailing edge is swept.

LDV Data - Velocities, Reynolds Stresses, and Velocity Triple Products:

• LDV_release_symm_v1.tar.gz (gzipped tar file, 1.6 MB)

Model Pressures:

• T662CpModelMeanData.tar.gz (gzipped tar file, 2.8 MB)

References:

• Kegerise, M. A., Leidy, A. N., Hannon, J. A., Rumsey, C. L., and Pulliam, T. H., "Measurements and Computations of the Turbulent Corner Flow on the NASA Juncture-Flow Model with a Symmetric Wing," AIAA-2023-0440, January 2023, doi: https://doi.org/10.2514/6.2023-0440.

Return to: Exp: NASA Juncture Flow - Intro Page for Turbulent Symmetric Wing

Recent significant updates:
10/31/2022 - initial posting of oil flow data
10/17/2022 - initial posting of LDV data
08/19/2022 - initial posting of Model Pressure data
