2D Zero Pressure Gradient High Mach Number Flat Plate Validation Case
K-e-Rt Model Results
Link to k-e-Rt equations
Note that thorough
grid studies were not performed for validation cases such as this one.
Some effort was made to ensure reasonable grid resolutions, but there may still be
small noticeable discretization errors. Therefore, these validation results shown should be considered
representative, but not "truth."

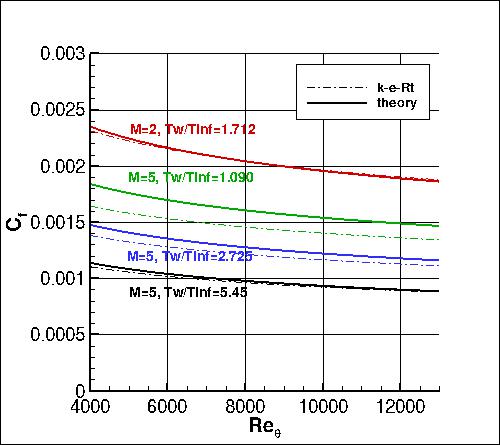

Above results are from CFD++ on the 545x385 grid.
CFD++ used freestream turbulence intensity=1.0% and freestream turbulent viscosity (relative to laminar)=10.
Please read note 5 on Notes on running CFD page.
These are compressible code results using no compressibility corrections.
Note that for these high-speed cases the Bradshaw realizability limiter
Note that this model is currently assigned
MRR Level 1 for the purposes of this website.
This is because at this time the TMBWG has results for this model
from only one code. The results on this page are therefore not necessarily
reliable until additional independent code(s) can be used to verify the model implementation.
Jump to: SA Results,
SST-Vm Results,
Wilcox2006-klim-m Results,
EASMko2003-S Results Return to: High Mach Number Flat Plate Validation Intro Page Return to: Turbulence Modeling Resource Home Page
Responsible NASA Official:
Ethan Vogel
in the k-e-Rt model
was used (see the posted model description page).
Also, rather than use integration to compute Re_theta, eqn 18b from the following
reference was employed to estimate theta:
"The Calculation of the Compressible Turbulent Boundary Layer in
an Arbitrary Pressure Gradient - A Correlation of Certain Previous
Methods" by B.S. Stratford and G.S. Beavers,
R. & M. No. 3207,
1961.

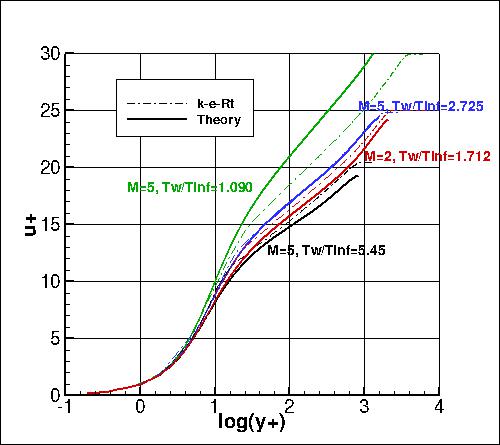

The right-hand plot is extracted from the location where Retheta=10000.
