Axisymmetric Separated Boundary Layer Validation Case
EASMko2003-S Model Results
Link to EASMko2003-S equations
Note that thorough
grid studies were not performed for validation cases such as this one.
Some effort was made to ensure reasonable grid resolutions, but there may still be
small noticeable discretization errors. Therefore, these validation results shown should be considered
representative, but not "truth."

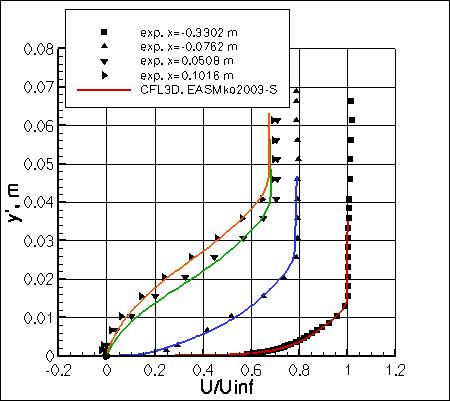

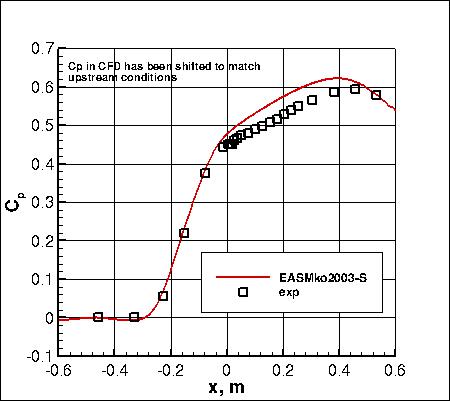

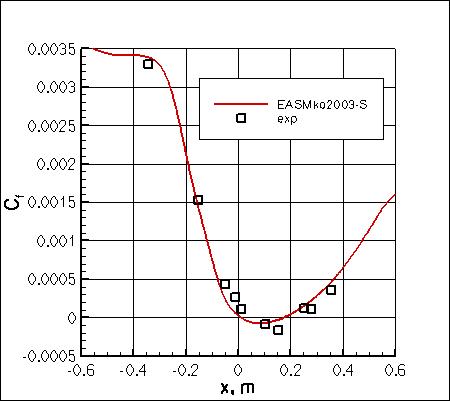

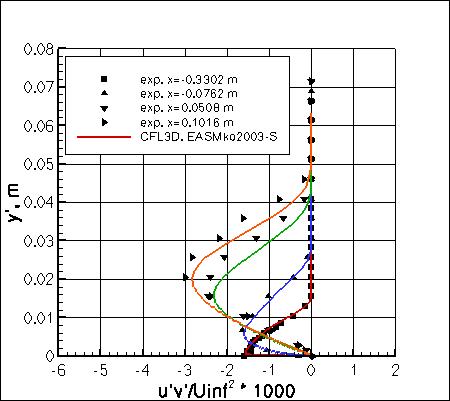

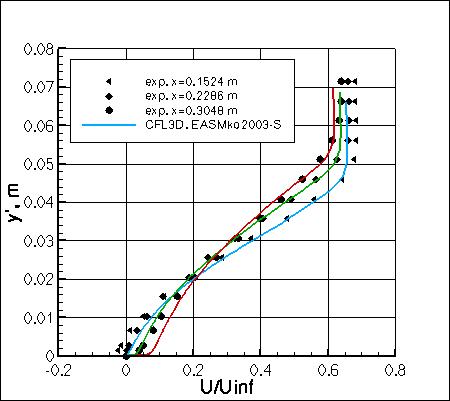

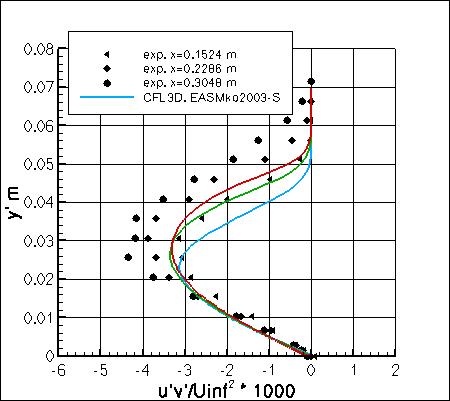

EASMko2003-S results are shown for
CFL3D on the second-finest grid (713x193).
CFL3D used freestream turbulence intensity=0.088% and freestream turbulent viscosity (relative to laminar)=0.009
(additional details can be found in the CFL3D User's Manual, Appendix H).
Please read note 5 on Notes on running CFD page.
Note that these are compressible code results at "essentially incompressible" conditions of M=0.08812.
There may be a very small influence of compressibility.
Note that this model is currently assigned
MRR Level 1 for the purposes of this website.
This is because at this time the TMBWG has results for this model
from only one code. The results on this page are therefore not necessarily
reliable until additional independent code(s) can be used to verify the model implementation.
Jump to: SA Results,
SSTm Results,
SSG/LRR-RSM-w2012 Results,
Wilcox2006-klim-m Results,
K-e-Rt Results Return to: Axisymmetric Separated Boundary Layer Validation Intro Page Return to: Turbulence Modeling Resource Home Page
