SST-Vm Expected Results - 2D Coflowing Jet

Previously on this page the results were reported as SST-V solutions, but more properly they should be referred to as SST-Vm.

Results are shown here from 2 compressible codes so that the user may compare their own compressible code results. Multiple grids were used so the user can see trends with grid refinement. Different codes will behave differently with grid refinement depending on many factors (including code order of accuracy and other numerics), but it would be expected that as the grid is refined the results will tend toward an "infinite grid" solution that is the same. Be careful when comparing details: any differences in boundary conditions or flow conditions may affect results.

Note that this case was previously referred to as a 2D Planar Shear, but it is more appropriately referred to as a 2D Coflowing Jet. Some of the figures associated with this case may still have the word "shear" in them.

Two independent compressible RANS codes, CFL3D and FUN3D, were used to compute this coflowing jet flow with the Menter shear stress transport model (version SST-Vm - see full description on Menter Shear Stress Transport page). The full series of 5 grids were used. CFL3D is a cell-centered structured-grid code, and FUN3D is a node-centered unstructured-grid code (FUN3D can solve on mixed element grids, so this case was computed on the same hexahedral grid used by CFL3D). Both codes used Roe's Flux Difference Splitting and a UMUSCL upwind approach. In CFL3D its standard UMUSCL (kappa=0.33333) scheme was used, whereas in FUN3D the option UMUSCL 0.5 was used. Both codes were run with full Navier-Stokes (as opposed to thin-layer, which is CFL3D's default mode of operation), and both codes used first-order upwinding for the advective terms of the turbulence model. Details about the codes can be found on their respective websites, the links for which are given on this site's home page. The codes were not run to machine-zero iterative convergence, but an attempt was made to converge sufficiently so that results of interest were well within normal engineering tolerance and plotting accuracy. For example, for CFL3D the density residual was typically driven down below 10-11. It should be kept in mind that many of the files given below contain computed values directly from the codes, using a precision greater than the convergence tolerance (i.e., the values in the files are not necessarily as precise as the number of digits given).

Note that in the SST-Vm model, in the production

P = \mu_t \Omega^2 - \frac{2}{3}\rho k \delta_{ij} \frac{\partial u_i}{\partial x_j}
the second term is not included. For this particular low-speed flow, the effect of this second term is negligible, so SST-V and SST-Vm results are essentially the same. (Previously on this page the results were reported as SST-V solutions, but more properly they should be referred to as SST-Vm.)

For the CFL3D and FUN3D tests reported below, the turbulent inflow boundary conditions used for SST-Vm were the following:

k_{farfield} = 9 \times 10^{-9} a_{\infty}^2
\omega_{farfield} = 1 \times 10^{-6} \frac{\rho_{\infty}a_{\infty}^2}{\mu_{\infty}}

The above two equations represent the "standard" SST-Vm boundary condition values used by both CFL3D and FUN3D, chosen to achieve a not-too-low level of freestream turbulent kinetic energy, a not-too-severe rate of freestream turbulence decay, and a reasonable level of freestream turbulent eddy viscosity of \mu_t/\mu_{\infty} = 0.009.

For the interested reader, typical input files for this problem are given here:

CFL3D V6.5:

FUN3D:

Note: prior to April 2, 2010, the drag coefficient numbers posted on this page were scaled too high by a factor of 10, because an incorrect reference area (of 1 instead of 10) was used. This has been corrected here.

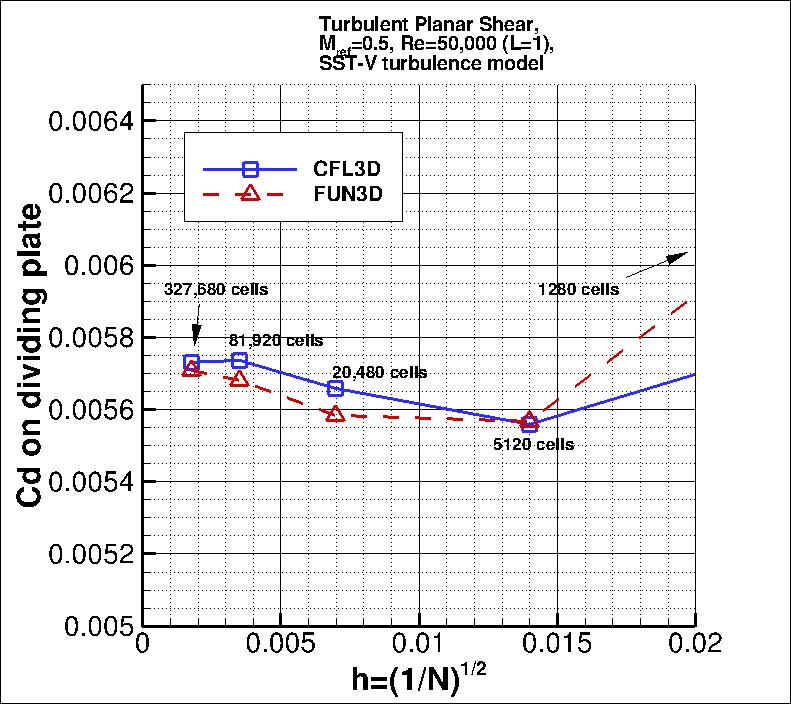

The following plot shows the convergence of the drag coefficient due to skin friction on both sides of the thin plate between -10 < x < 0 with grid size for the two codes. In the plot the x-axis is plotting 1/N1/2, which is proportional to grid spacing (h). At the left of the plot, h=0 represents an infinitely fine grid. Both codes go toward approximately the same result on an infinitely refined grid.

convergence of Cd on thin plate vs h

Using the uncertainty estimation procedure from the Fluids Engineering Division of the ASME (Celik, I. B., Ghia, U., Roache, P. J., Freitas, C. J., Coleman, H., Raad, P. E., "Procedure for Estimation and Reporting of Uncertainty Due to Discretization in CFD Applications," Journal of Fluids Engineering, Vol. 130, July 2008, 078001, https://doi.org/10.1115/1.2960953), described in Summary of Uncertainty Procedure, the finest 3 grids yield the following for drag coefficient on the thin plate:

Code Computed apparent order, p Approx rel fine-grid error, ea21 Extrap rel fine-grid error, eext21 Fine-grid convergence index, GCIfine21
CFL3D oscillatory convergence 0.122% N/A N/A
FUN3D 1.70 0.522% 0.232% 0.290%

The following plots show u-velocity (nondimensionalized by reference speed of sound) at 3 different locations in the jet: (1) x=2.71623, (2) x=29.2468, and (3) x=95.501. As seen, both codes are tending toward similar results as the grid is refined.

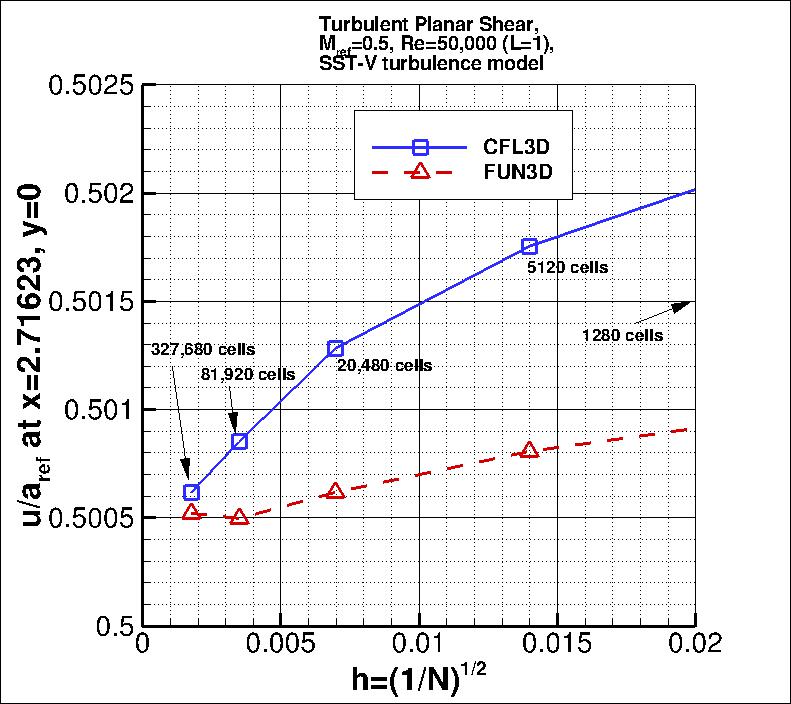

convergence of u-velocity near x=3 vs h

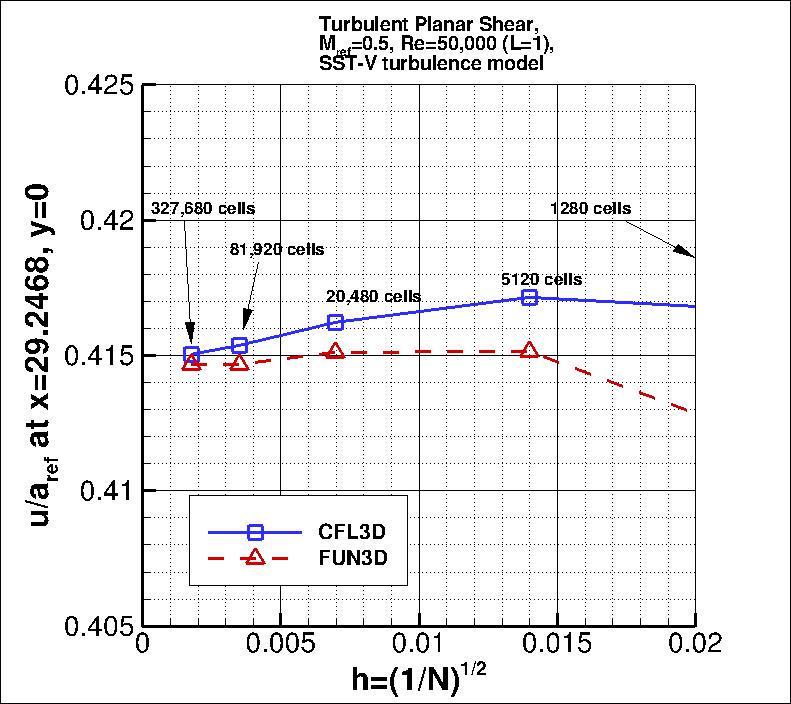

convergence of u-velocity near x=29 vs h

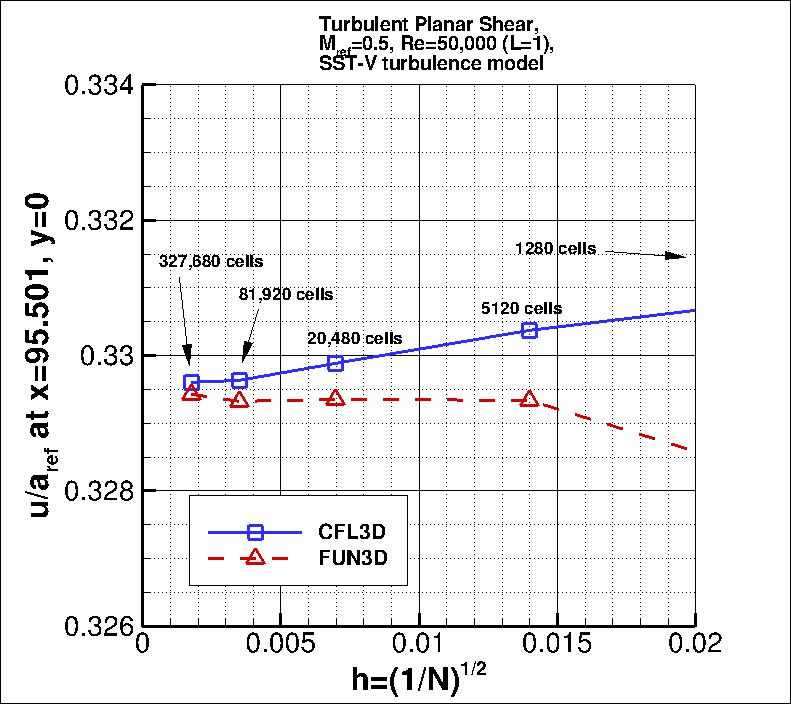

convergence of u-velocity near x=96 vs h

Using the uncertainty estimation procedure from the Fluids Engineering Division of th e ASME (Celik, I. B., Ghia, U., Roache, P. J., Freitas, C. J., Coleman, H., Raad, P. E., "Procedure for Estimation and Reporting of Uncertainty Due to Discretization in CFD Applications," Journal of Fluids Engineering, Vol. 130, July 20 08, 078001, https://doi.org/10.1115/1.2960953), described in Summary of Uncertainty Procedure, the finest 3 grids yield the following:

Code Quantity Computed apparent order, p Approx rel fine-grid error, ea21 Extrap rel fine-grid error, eext21 Fine-grid convergence index, GCIfine21
CFL3D u near x=3 0.88 0.047% 0.056% 0.070%
CFL3D u near x=29 1.38 0.077% 0.048% 0.060%
CFL3D u near x=96 2.77 0.011% 0.002% 0.002%
FUN3D u near x=3 oscillatory convergence 0.005% N/A N/A
FUN3D u near x=29 4.57 0.004% <0.001% <0.001%
FUN3D u near x=96 oscillatory convergence 0.031% N/A N/A

The data file that generated all the above plots is given here: convergence_sstv.dat.

The u-velocity along x at y=0 from both codes on the finest grid is shown in the next plot. Both codes are seen to yield nearly identical results over the entire domain.

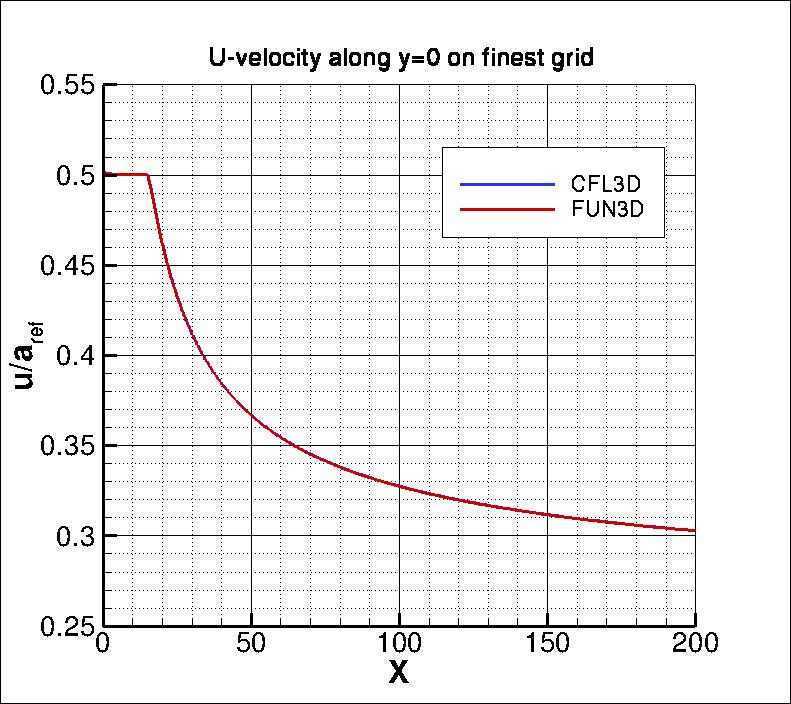

u-velocity along x at y=0

The data file that generated the above plot is given here: uvel_y_0_sstv.dat.

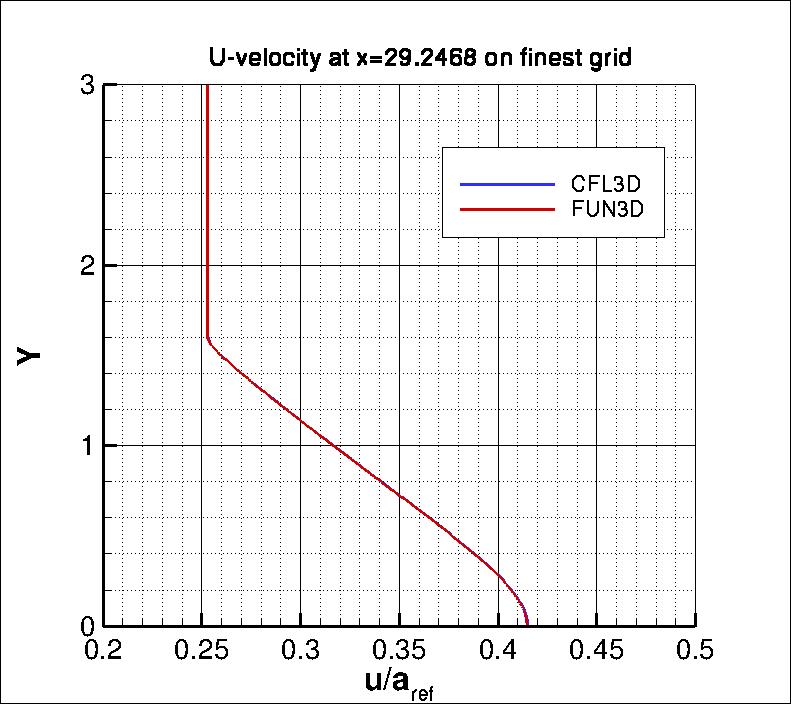

The u-velocity along y at three x-stations from both codes on the finest grid is shown in the next three plots. Again, both codes are seen to yield nearly identical results.

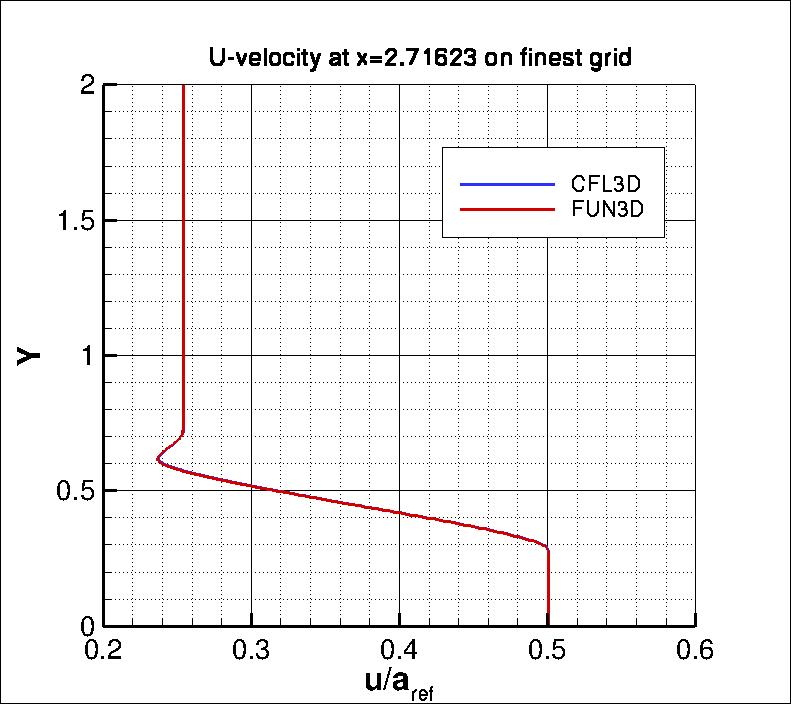

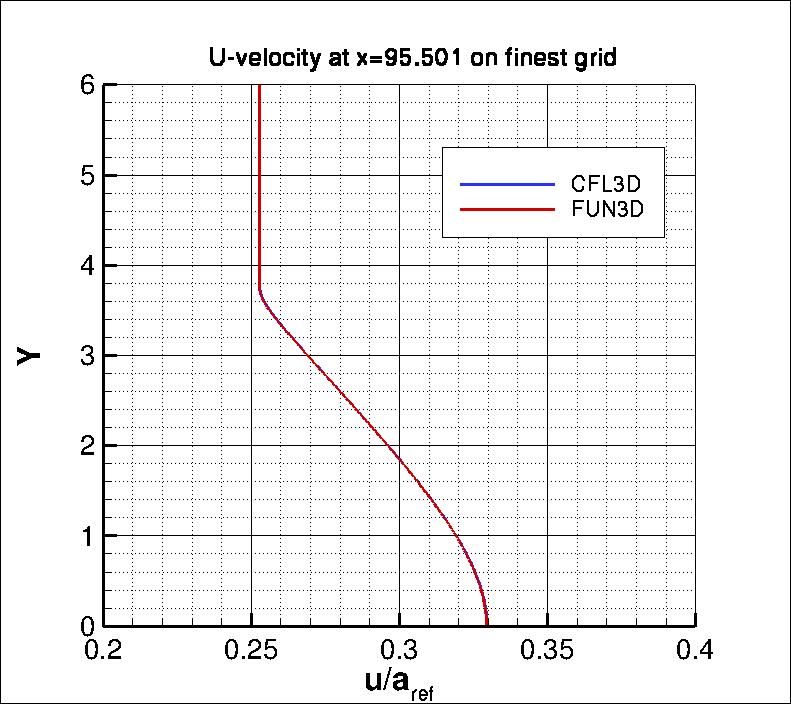

u-velocity along y at x=2.71623 u-velocity along y at x=29.2468 u-velocity along y at x=95.501

The data files that generated the above plot are given here: uvel_x_3_sstv.dat, uvel_x_29_sstv.dat, uvel_x_96_sstv.dat.

This type of flow exhibits self-similar behavior far enough downstream. The velocity can be normalized as (u-u1)/(um-u1), where u1 is the velocity at the edge of the outer stream, and um is the peak (centerline) velocity. When plotted against y/b, where b is the halfwidth (location where u-u1 is half of um-u1), the results can be compared to the experimental data of Bradbury and Riley (J. Fluid Mech 27(2):381-394, 1967, https://doi.org/10.1017/S0022112067000400). In the following plot, CFL3D results are taken from the three x-locations x=29.2468, x=64.2188, and x=95.501. The first location is not far enough downstream to be fully self-similar.

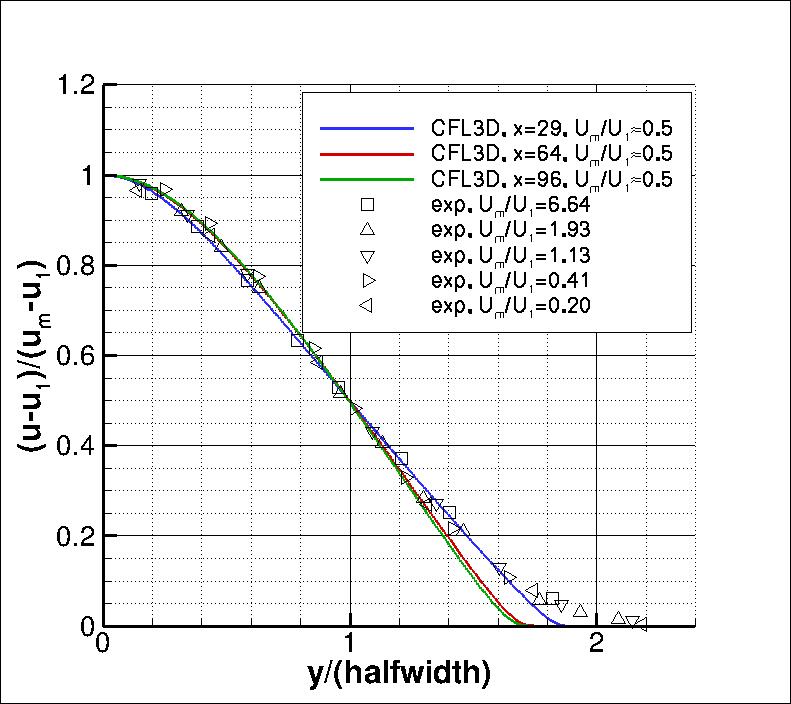

normalized velocity in wake compared to experiment

The data file that generated the above plot is given here: normalized_u_sstv.dat.

The eddy viscosity contours (nondimensionalized by freestream laminar viscosity) from the two codes on the finest grid are shown in the following plots (y-scale expanded for clarity). The first set of contours are in the farfield, and the second set are near the thin plate. Results from the two codes are nearly the same. (Note legends do not necessarily reflect min and max values.)

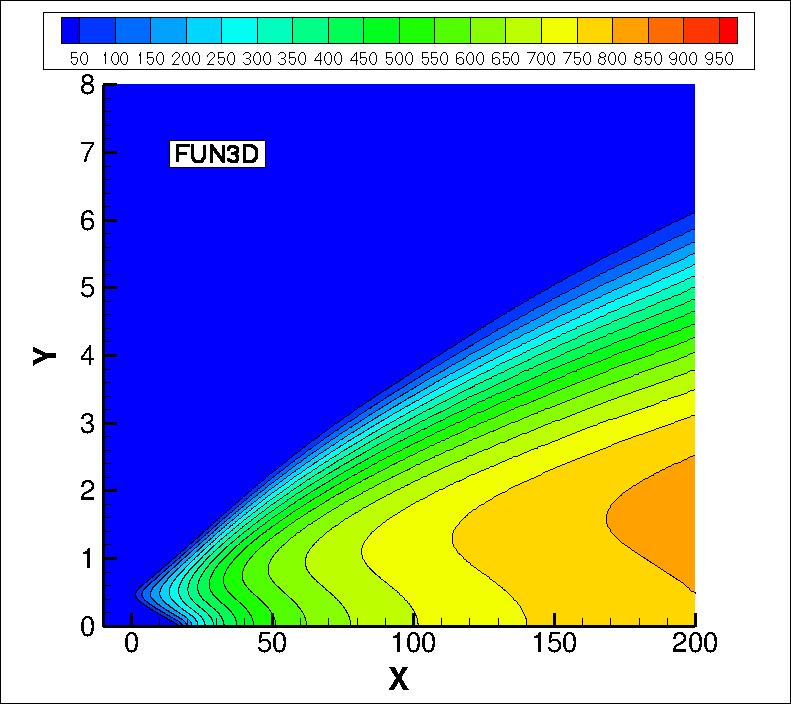

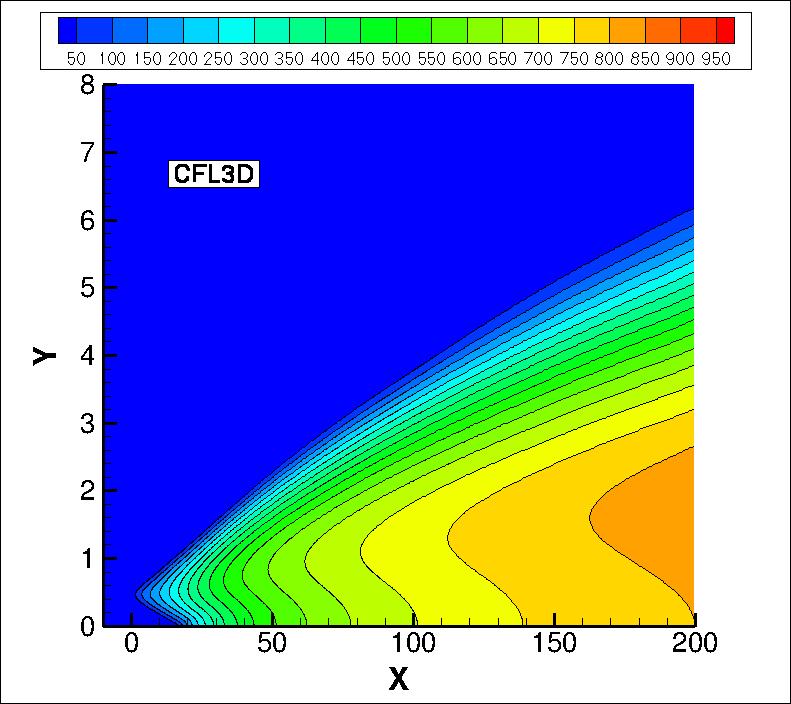

eddy viscosity contours for CFL3D in the farfield eddy viscosity contours for FUN3D in the farfield

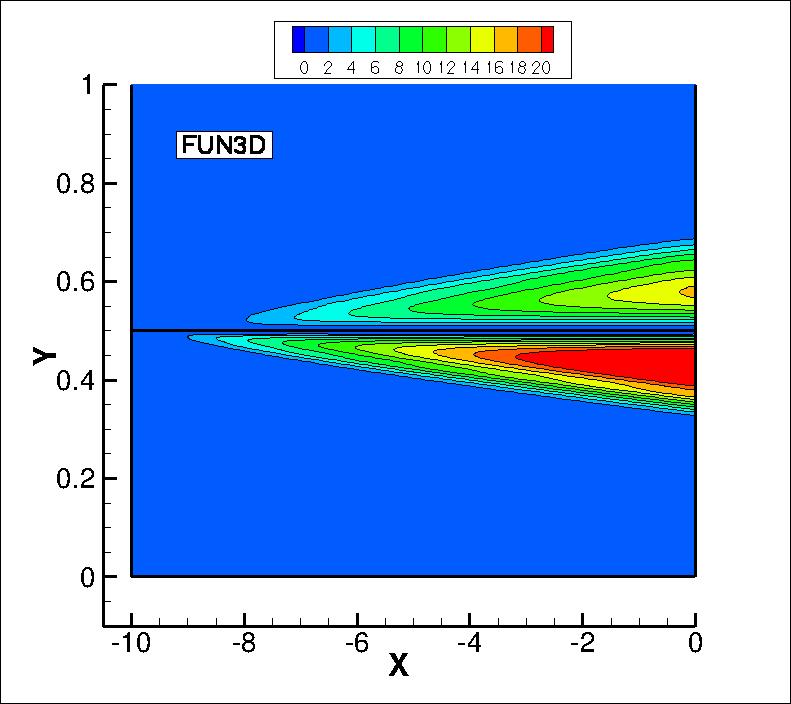

eddy viscosity contours for CFL3D near the thin plate eddy viscosity contours for FUN3D near the thin plate

The data files that generated the above plots are given here: mut_contours_cfl3d_sstv.dat.gz (3.9 MB) (structured, at cell centers) and mut_contours_fun3d_sstv.dat.gz (6.6 MB) (unstructured, at grid points). Note that these are both gzipped Tecplot formatted files, so you must either have Tecplot or know how to read their format in order to use these files.

Using the finest grid, an extracted nondimensional eddy viscosity profile at x=29.2468 is shown below.

eddy viscosity at x=29.2468

The data file that generated the above profile is given here: mut_29_sstv.dat.

The nondimensionalized k contours and omega contours from the two codes on the finest grid in the farfield are shown in the following plots (y-scale expanded for clarity).

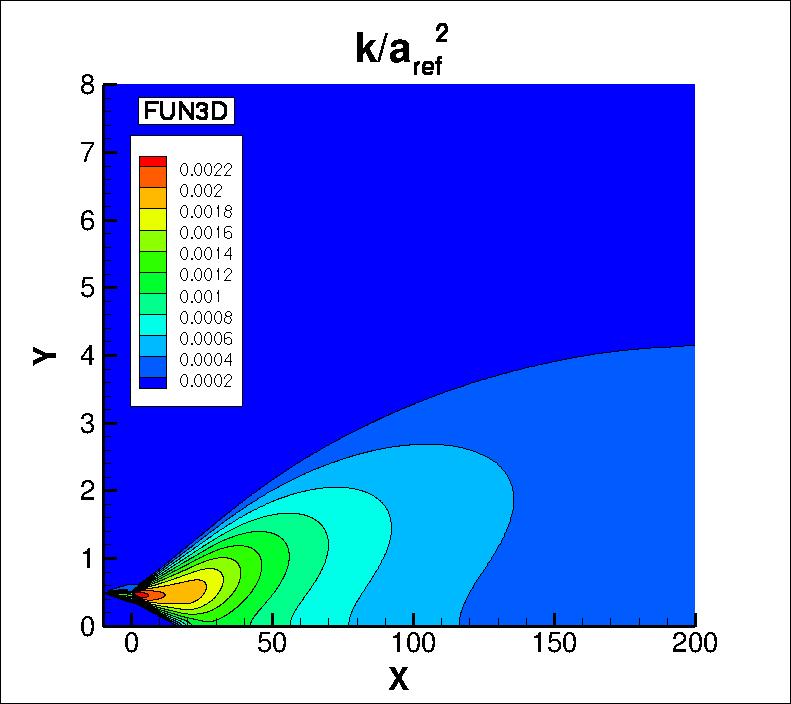

k contours for CFL3D in the farfield k contours for FUN3D in the farfield

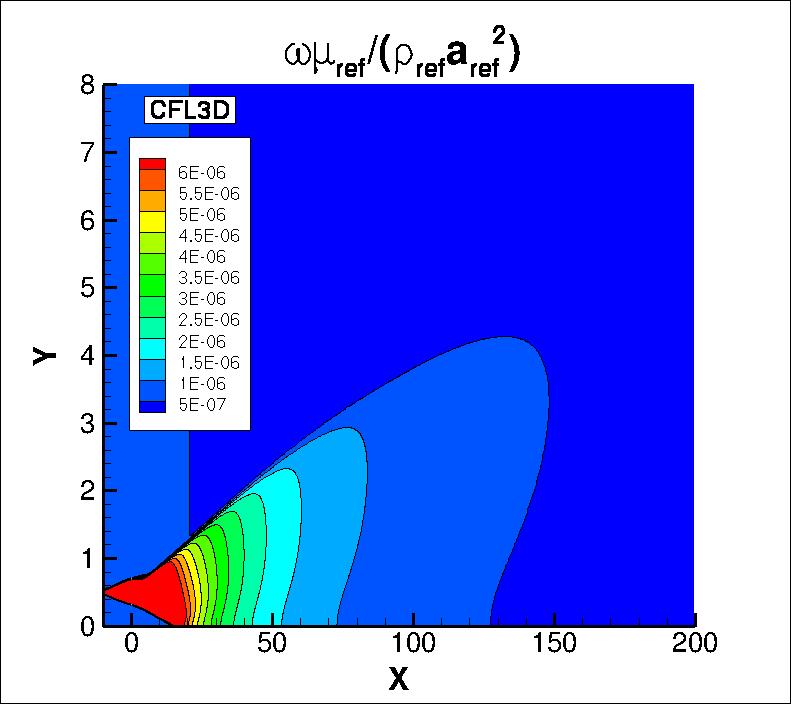

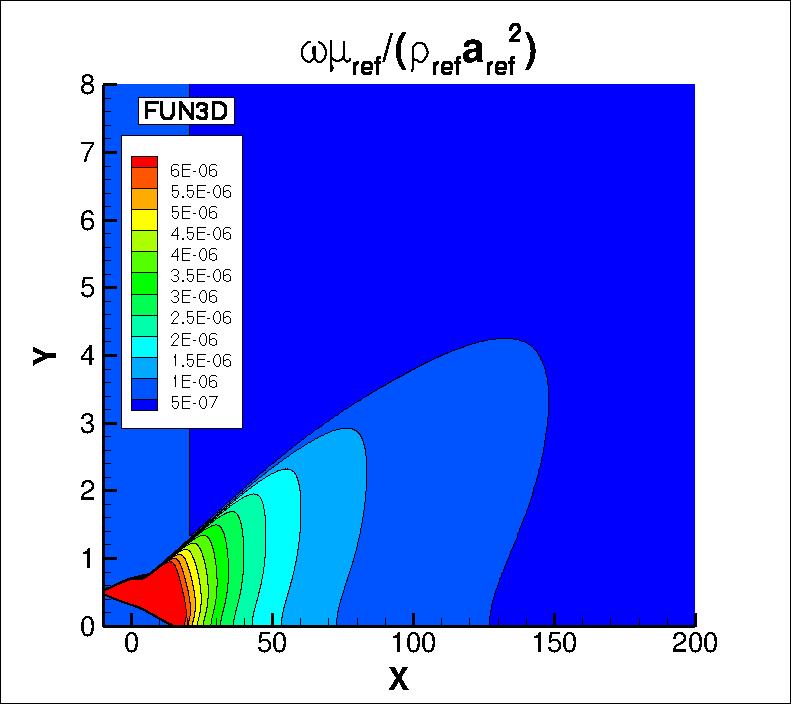

omega contours for CFL3D in the farfield omega contours for FUN3D in the farfield

The data files that generated the above plots are given here: k_contours_cfl3d_sstv.dat.gz (4.0 MB) (structured, at cell centers), omega_contours_cfl3d_sstv.dat.gz (4.0 MB) (structured, at cell centers), k_contours_fun3d_sstv.dat.gz (6.6 MB) (unstructured, at grid points), and omega_contours_fun3d_sstv.dat.gz (6.5 MB) (unstructured, at grid points). Note that these are all gzipped Tecplot formatted files, so you must either have Tecplot or know how to read their format in order to use these files.

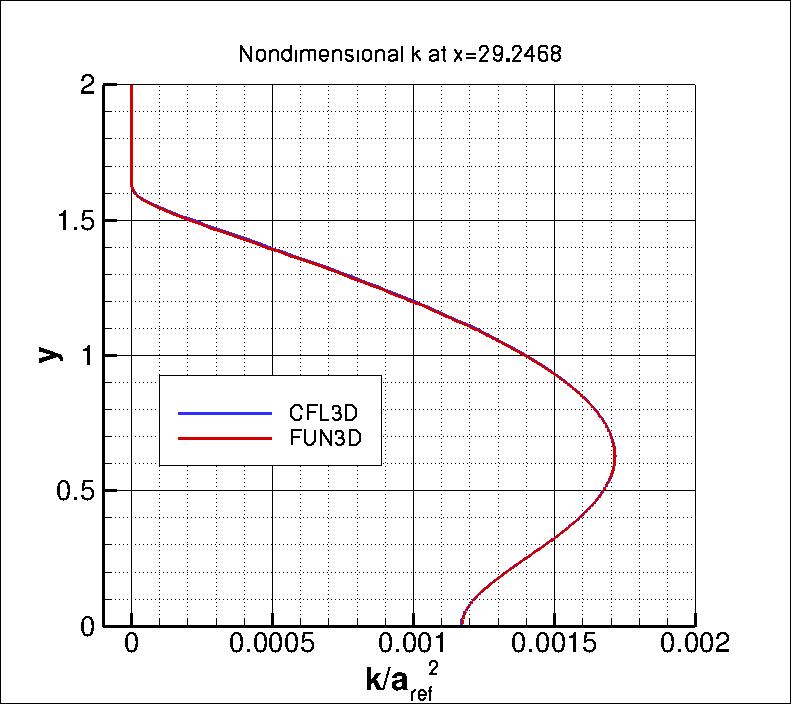

Using the finest grid, extracted nondimensional k and omega profiles at x=29.2468 are shown below.

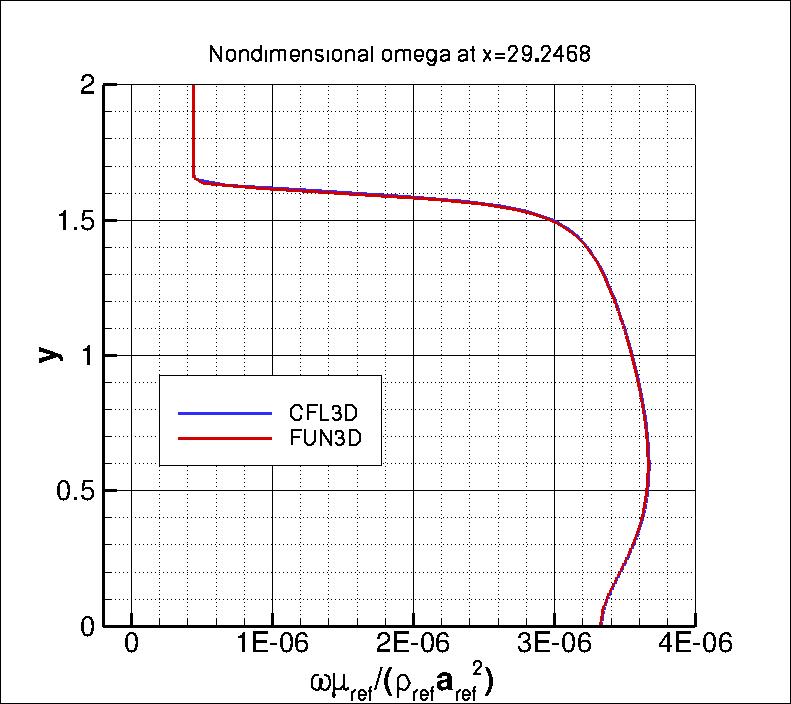

nondimensional k at x=29.2468 nondimensional omega at x=29.2468

The data file that generated the above profile is given here: sstv_omega_k_29.dat.

The SST model relies on the minimum distance to the nearest wall. For this case, contours of this function (near the thin plate, which is the only wall in the domain) are shown in the following plot, for the coarse grid 3 levels down from the finest grid. The y-scale has been expanded for clarity.

minimum distance function

The data file that generated the above plot is given in mindist.dat (unstructured, at grid points). Note that this is a Tecplot formatted file, so you must either have Tecplot or know how to read their format in order to use it.

It is important to note that computing minimum distance by searching along grid lines is incorrect, and is not the same as computing actual minimum distance to the nearest wall for this grid. Using the former method will yield differences in the results. The following sketches demonstrate the concept of minimum distance. Improperly-calculated minimum distance functions will particularly produce incorrect results for cases in which the grid lines are not perfectly normal to the body surface, or when the nearest body does not lie in the current grid zone. Note that when the nearest wall point is a sharp convex corner or edge (like an airfoil or wing trailing edge) then the correct minimum distance is the distance to that corner or edge, which is not a wall normal.

sketch 1 demonstrating the concept of minimum distance function sketch 2 demonstrating the concept of minimum distance function

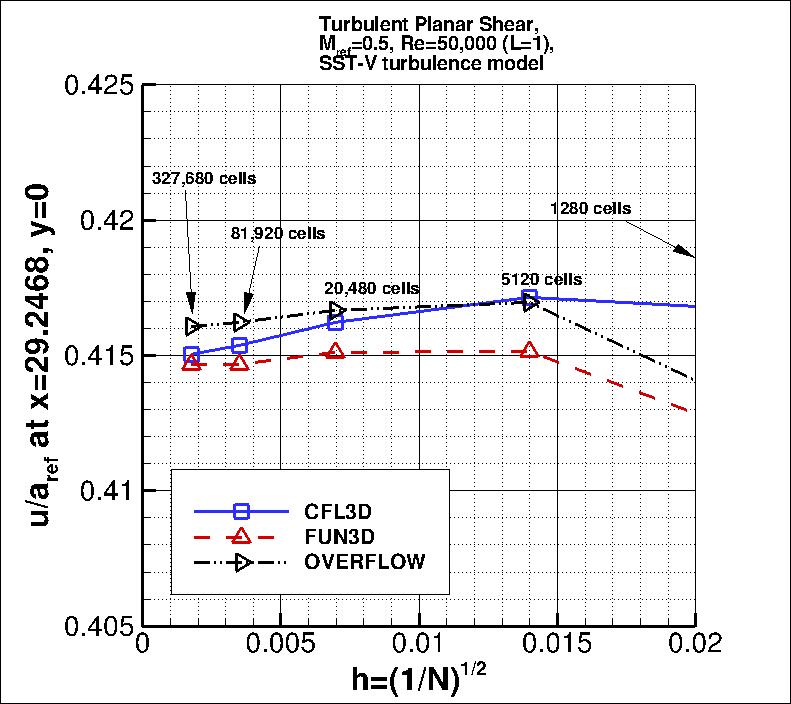

Results from OVERFLOW are shown alongside the CFL3D and FUN3D results below. There is a very small offset in u-velocity in the first plot as the grid is refined. NAS Technical Paper 2014-03 (pdf file) (16.2 MB) by Childs, Pulliam, and Jespersen provides details of the OVERFLOW results for this case.

convergence of u-velocity near x=29 vs h, incl OVERFLOW results

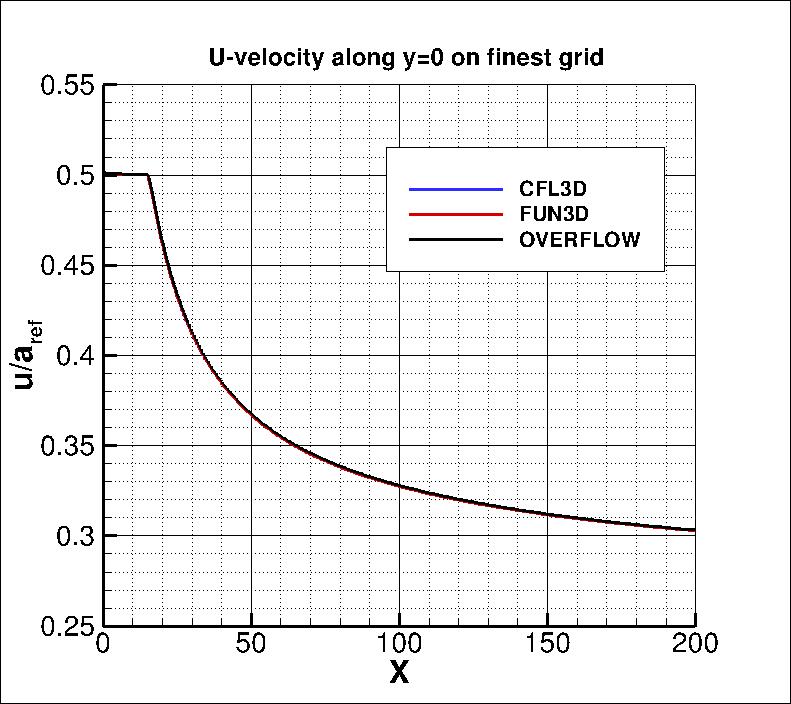

u-velocity along x at y=0, incl OVERFLOW results
