Axisymmetric Transonic Bump Validation Case

SSTm Model Results


Link to SSTm equations

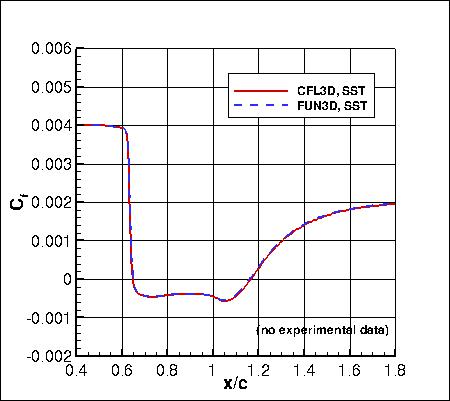

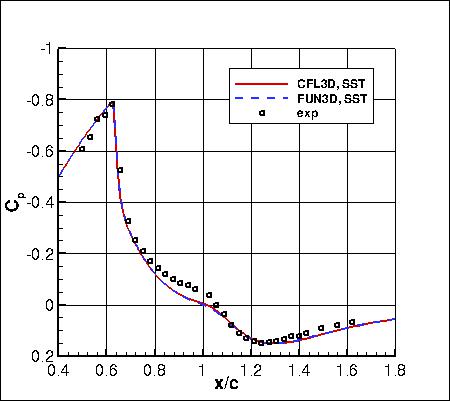

SSTm - surface pressure coefficient SSTm - surface skin friction coefficient

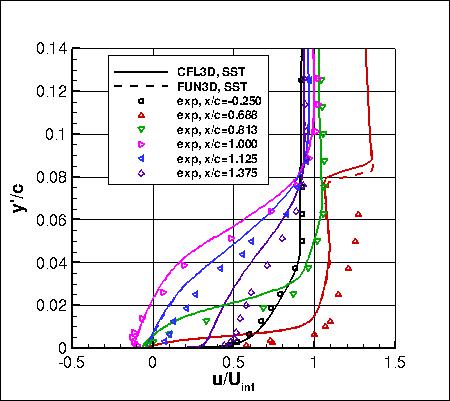

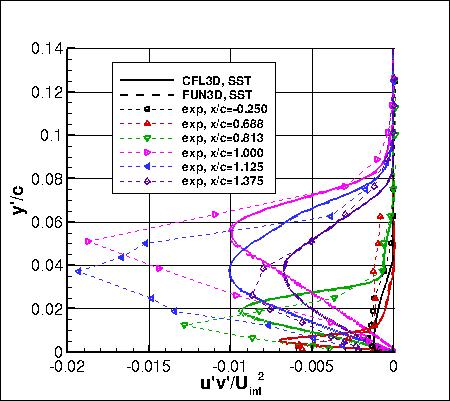

SSTm - u velocites SSTm - turbulent shear stresses

Previously on this page the results were reported as SST solutions, but more properly they should be referred to as SSTm. Essentially no difference is expected.

Note that thorough grid studies were not performed for validation cases such as this one. Some effort was made to ensure reasonable grid resolutions, but there may still be small noticeable discretization errors. Therefore, these validation results shown should be considered representative, but not "truth."

The plots compare the SSTm results from CFL3D and FUN3D with experimental data. The CFD codes predict the flow separation to occur near x/c = 0.65 and the reattachment near x/c = 1.16 (in experiment these were 0.7 and 1.1, respectively). Both codes used freestream turbulence intensity=0.0089% and freestream turbulent viscosity (relative to laminar)=0.009 (additional details can be found in the CFL3D User's Manual, Appendix H). Please read note 5 on Notes on running CFD page. These results are from the second-finest grid (721x321). Both codes yield nearly identical results, and these are also very close to results for the SST-2003m model. Note that the velocity profiles differ slightly only where they pass through the shock (seen in the x/c = 0.688 profile). The data files from CFL3D are given here: axibump_cfl3d_cp_sst.dat, axibump_cfl3d_cf_sst.dat, axibump_cfl3d_u_sst.dat, axibump_cfl3d_uv_sst.dat. (Note: the profiles have been interpolated using Tecplot software onto pre-set points, that may or may not correspond to the actual grid points or grid cells used in the computation.) A typical CFL3D input file is: axibump_cfl3d_typical_sst.inp. A typical FUN3D input file is: fun3d.nml_typical_sst_2.

As for other two-equation model cases posted on the TMR website, the - (2/3) \rho k \delta_{ij} \partial u_i / \partial x_j term in the turbulence production was ignored (often the default for codes whose predominant applications are low-speed or transonic cases; see notes 4 and 7 on the Notes on Running the Cases with CFD page). This approximation makes only a very small difference in results for this case, as demonstrated on the BSLm model results page.

In this case CFL3D was run on a version of the 3-D grid that was centered around the x-z plane, rather than on the posted grid that has one plane aligned with the x-z plane (1 deg. still separated the two planes).
