Axisymmetric Transonic Bump Validation Case
Wilcox2006-klim-m Model Results
Link to Wilcox2006-klim-m equations
Previously on this page the results were reported as Wilcox2006-klim solutions, but more properly they should be referred
to as Wilcox2006-klim-m. Essentially no difference is expected.
Note that thorough
grid studies were not performed for validation cases such as this one.
Some effort was made to ensure reasonable grid resolutions, but there may still be
small noticeable discretization errors. Therefore, these validation results shown should be considered
representative, but not "truth."

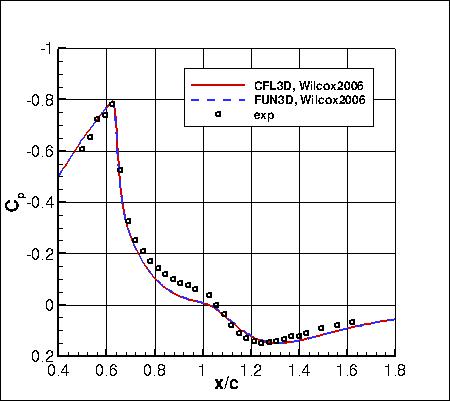

The plots compare the Wilcox2006-klim-m results from CFL3D and FUN3D with experimental data.
The CFD codes predict the flow separation to occur at x/c = 0.65 and reattachment at x/c = 1.19
(in experiment these were 0.7 and 1.1, respectively).
Both codes used freestream turbulence intensity=0.0089% and freestream turbulent viscosity (relative to laminar)=0.009
(additional details can be found in the CFL3D User's Manual, Appendix H).
Please read note 5 on Notes on running CFD page.
These results are from the second-finest grid (721x321).
Both codes yield nearly identical results, with
the velocity profiles differing slightly only where they pass through the shock
(seen in the x/c = 0.688 profile).
The data files from CFL3D are given here:
axibump_cfl3d_cp_w06.dat,

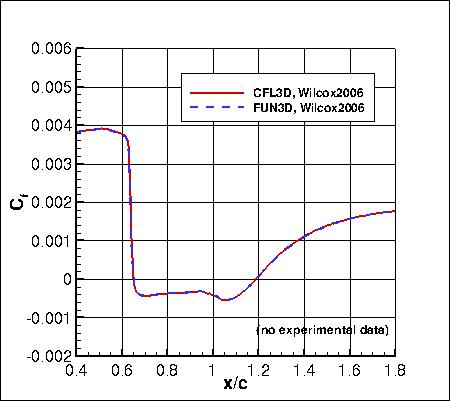

axibump_cfl3d_cf_w06.dat,

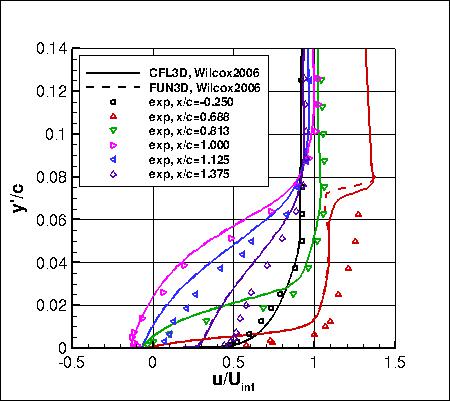

axibump_cfl3d_u_w06.dat,

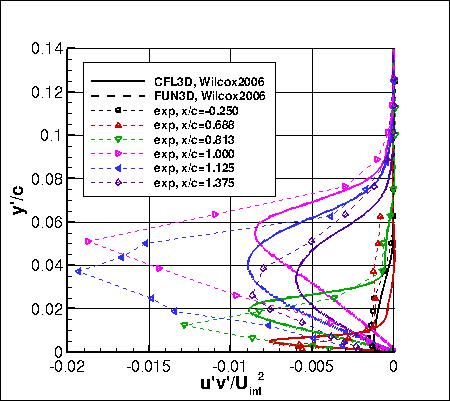

axibump_cfl3d_uv_w06.dat.
(Note: the profiles have been interpolated using Tecplot software onto pre-set points, that may or may
not correspond to the actual grid points or grid cells used in the computation.)
A typical CFL3D input file is:
axibump_cfl3d_typical_w06.inp.
A typical FUN3D input file is:
fun3d.nml_typical_w06_2.
As for other two-equation model cases posted on the TMR website, the
Note that this model is currently assigned
MRR Level 2 for the purposes of this website.
This is because at this time the TMBWG has results for this model
from two different codes from the same home organization.
The results on this page are therefore not necessarily
reliable until additional independent code(s) can be used to verify the model implementation.
Note that the so-called "Pope correction" in Wilcox2006-klim-m does have some influence for this case. Shown here is the standard model
(with the correction).
In this case CFL3D
was run on a version of the 3-D grid that was centered around the x-z plane, rather
than on the posted grid that has one plane aligned with the x-z
plane (1 deg. still separated the two planes).
