2D Convex Curvature Boundary Layer Validation Case

K-e-Rt-RC Model Results


Link to K-e-Rt-RC equations

Note that thorough grid studies were not performed for validation cases such as this one. Some effort was made to ensure reasonable grid resolutions, but there may still be small noticeable discretization errors. Therefore, these validation results shown should be considered representative, but not "truth."

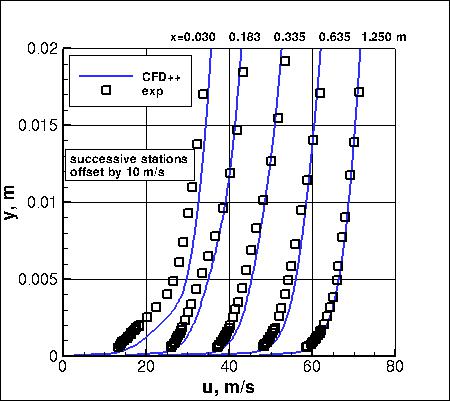

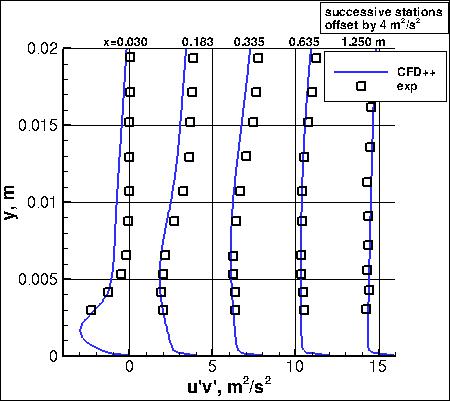

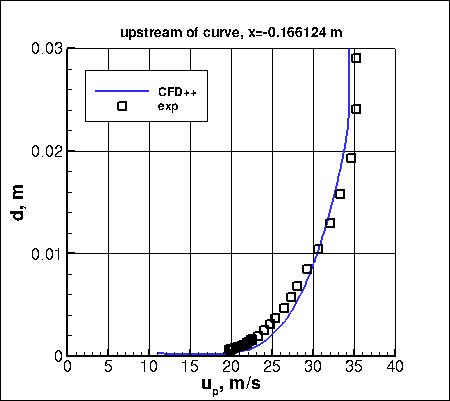

Above k-e-Rt-RC results are from CFD++, using the 513x193 grid. CFD++ used freestream turbulence intensity=0.2% and freestream turbulent viscosity (relative to laminar)=20. Please read note 5 on Notes on running CFD page. For the station at x=-0.166124 m, the parallel velocity component u_p is the velocity parallel to the wall (which is canted at 30 deg relative to Cartesian coordinates), and the u_p'v_p' is taken with respect to the wall-normal and wall-parallel directions. The formulas for computing these rotated quantities from Cartesian quantities are:

• u_p = u*cos(theta) + v*sin(theta)
• u_p'v_p' = 0.5*(v'v'-u'u')*sin(2*theta) + u'v'*cos(2*theta)

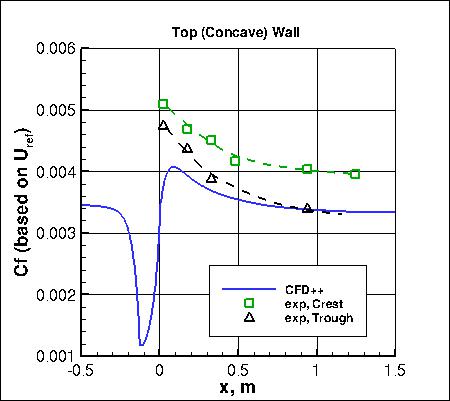

Although the main focus of this case is on the bottom (convex) wall region, top (concave) wall skin friction results from the 2-D computation are also shown in the last plot above.

Note that this model is currently assigned MRR Level 1 for the purposes of this website. This is because at this time the TMBWG has results for this model from only one code. The results on this page are therefore not necessarily reliable until additional independent code(s) can be used to verify the model implementation.

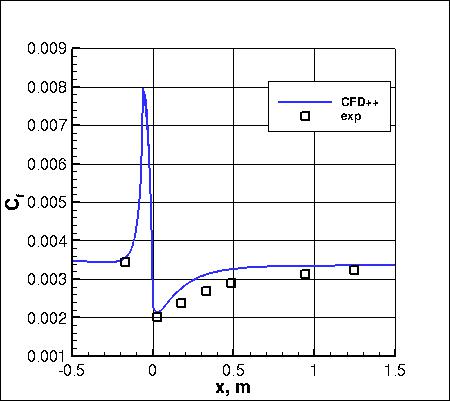

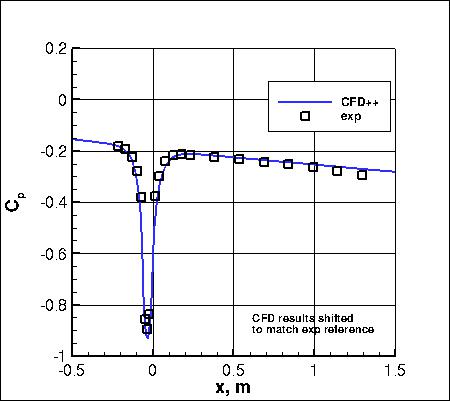

Note that the wall-shapes in the curved region have (unintentional) small oscillations in the second-derivative of the provided grids; these cause small oscillations in Cp and Cf near their peaks (not easily visible at the scales of the plots above).

Note that these are compressible code results at "essentially incompressible" conditions of M=0.093. There may be a very small influence of compressibility.
