2D Convex Curvature Boundary Layer Validation Case

SST-RCm Model Results


Link to SST-RCm equations

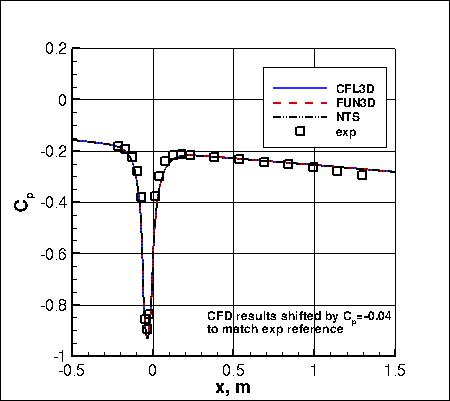

SST-RCm - Cp vs x SST-RCm - Cf vs x

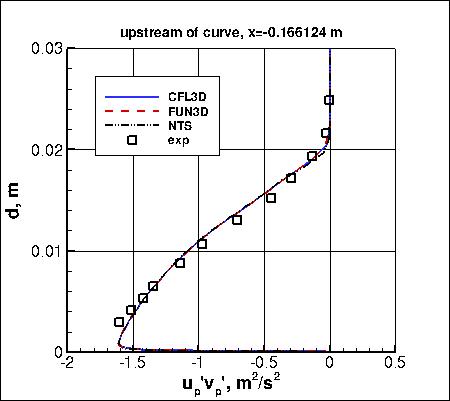

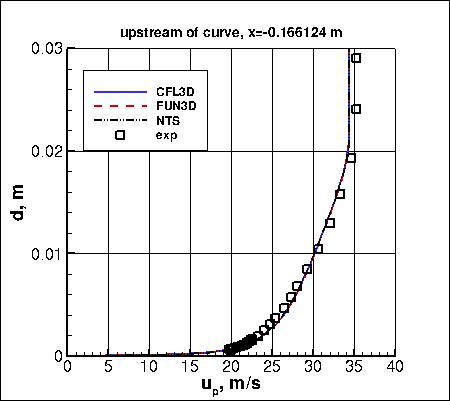

SST-RCm - streamwise velocity upstream of curve SST-RCm - streamwise-aligned turbulent shear stress upstream of curve

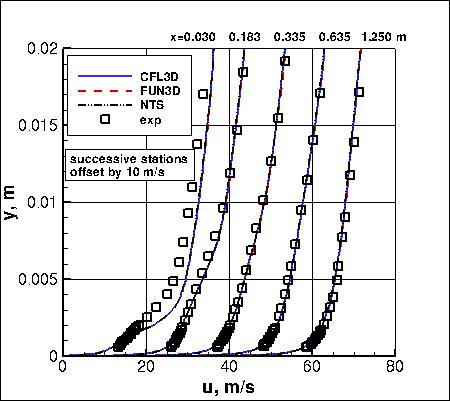

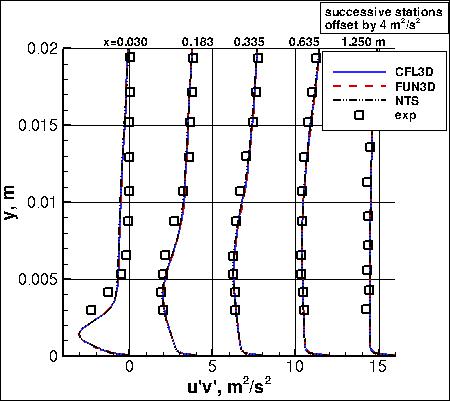

SST-RCm - u velocity at 5 stations SST-RCm - turbulent shear stress at 5 stations

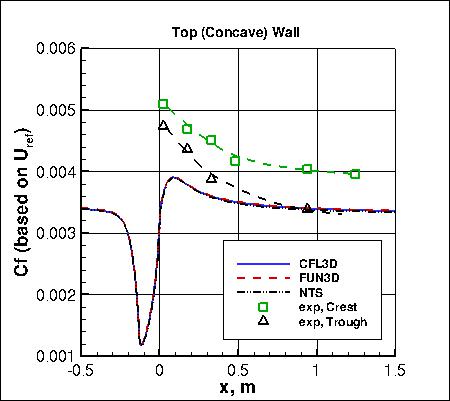

SST-RCm - Cf along top (concave) wall

Previously on this page the results were reported as SST-RC solutions, but more properly they should be referred to as SST-RCm. Essentially no difference is expected.

Note that thorough grid studies were not performed for validation cases such as this one. Some effort was made to ensure reasonable grid resolutions, but there may still be small noticeable discretization errors. Therefore, these validation results shown should be considered representative, but not "truth."

Above SST-RCm results are from three independent CFD codes: CFL3D and FUN3D (NASA LaRC, USA), and NTS (NTS, Russia). All three codes used freestream turbulence intensity=0.083% and freestream turbulent viscosity (relative to laminar)=0.009 (additional details can be found in the CFL3D User's Manual, Appendix H). Please read note 5 on Notes on running CFD page. They all used the same 513x193 grid. All three yield nearly identical results for all quantities. For the station at x=-0.166124 m, the parallel velocity component up is the velocity parallel to the wall (which is canted at 30 deg relative to Cartesian coordinates), and the up'vp' is taken with respect to the wall-normal and wall-parallel directions. The formulas for computing these rotated quantities from Cartesian quantities are:

where theta = 30 deg. The distance d is taken across the channel at this upstream location.

Although the main focus of this case is on the bottom (convex) wall region, top (concave) wall skin friction results from the 2-D computation are also shown in the last plot above.

Note that this model is currently assigned MRR Level 2 for the purposes of this website. This is because the model has not yet been applied to a verification case, including complete grid convergence study. The results on this page are therefore not necessarily reliable until such a verification can be completed.

Note that the wall-shapes in the curved region have (unintentional) small oscillations in the second-derivative of the provided grids; these cause small oscillations in Cp and Cf near their peaks (not easily visible at the scales of the plots above).

Note that these are compressible code results at "essentially incompressible" conditions of M=0.093. There may be a very small influence of compressibility. Only the CFD data files from CFL3D are given here for reference: smits_cp_cfl3d_sstrc.dat, smits_cf_cfl3d_sstrc.dat, smits_u_upstream_cfl3d_sstrc.dat, smits_uv_upstream_cfl3d_sstrc.dat, smits_u_cfl3d_sstrc.dat (updated 5/27/2015), smits_uv_cfl3d_sstrc.dat (updated 5/27/2015), and smits_cftopwall_cfl3d_sstrc.dat. A typical CFL3D input file is: smits_cfl3d_typical_sstrc.inp. A typical FUN3D input file is: fun3d.nml_typical_sstrc.





Jump to: SA ResultsSA-RC ResultsSSTm ResultsSSG/LRR-RSM-w2012 ResultsWilcox2006-klim-m ResultsEASMko2003-S ResultsK-e-Rt-RC ResultsGLVY-RSM-2012 Results

Return to: 2D Convex Curvature Boundary Layer Case Intro Page

Return to: Turbulence Modeling Resource Home Page






Recent significant updates:
05/27/2015 - replaced files smits_u_cfl3d_sstrc.dat, smits_uv_cfl3d_sstrc.dat
