2D Zero Pressure Gradient Flat Plate Validation Case

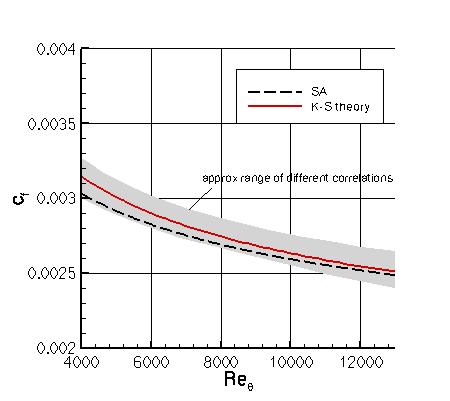

SA Model Results
Link to SA equations
Above SA results are from CFL3D on the 545x385 grid;
FUN3D results on same grid are almost identical.
Both CFL3D and FUN3D used freestream value of the SA turbulence field variable (relative to laminar)=3.
Please read note 5 on Notes on running CFD page.
See also Flat Plate Verification case.

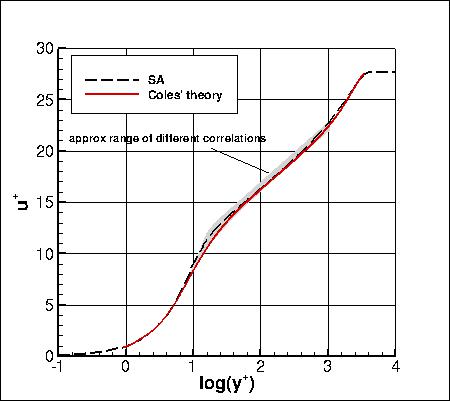

The right-hand plot is extracted from the location where Retheta=10000.
Note that these are compressible code results
at "essentially incompressible" conditions of M=0.2.
There may be a very small influence of compressibility.
The CFD postprocessed data files are given here for reference:
sa-cf_cfl3d.dat and
sa-upyp_cfl3d.dat.
A typical CFL3D input file is:
cfl3d_typical_sa.inp.
A typical FUN3D input file is:
fun3d.nml_typical_sa_2.
