2D Zero Pressure Gradient Flat Plate Validation Case

SSG/LRR-RSM-w2012 Model Results


Link to SSG/LRR-RSM-w2012 equations

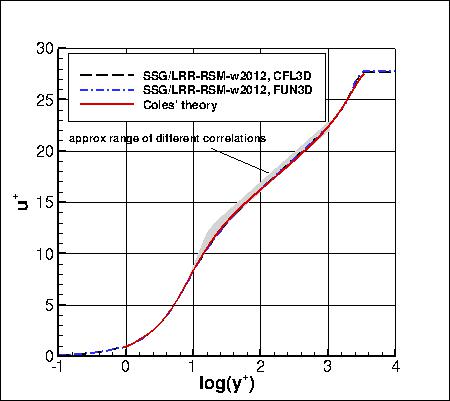

Above SSG/LRR-RSM-w2012 results are from CFL3D and FUN3D on the 545x385 grid. Both CFL3D and FUN3D used freestream turbulence intensity=0.039% and freestream turbulent viscosity (relative to laminar)=0.009 (additional details can be found in the CFL3D User's Manual, Appendix H). Please read note 5 on Notes on running CFD page. See also the Flat Plate Verification case. The right-hand plot is extracted from the location where Retheta=10000. Note that these are compressible code results at "essentially incompressible" conditions of M=0.2. There may be a very small influence of compressibility. The CFD postprocessed data files are given here for reference: ssglrrrsm-cf_cfl3d.dat and ssglrrrsm-upyp_cfl3d.dat. A typical CFL3D input file is: cfl3d_typical_ssglrrrsm.inp. A typical FUN3D input file is: fun3d.nml_typical_ssglrr_2.

Jump to: SA Results,  SSTm Results,  SST-Vm Results,  BSLm Results,  Wilcox2006-klim-m Results,  K-kL-MEAH2015m Results,  EASMko2003-S Results,  K-e-Rt Results,  GLVY-RSM-2012 Results

Return to: Flat Plate Validation Intro Page

Return to: Turbulence Modeling Resource Home Page

Recent significant updates:
12/04/2014 - added CFL3D data files and added FUN3D results to plots
