2D Zero Pressure Gradient Flat Plate Validation Case

K-kL-MEAH2015m Model Results


Link to K-kL-MEAH2015m equations

Previously on this page the results were reported as k-kL-MEAH2015 solutions, but more properly they should be referred to as k-kL-MEAH2015m. Essentially no difference is expected.

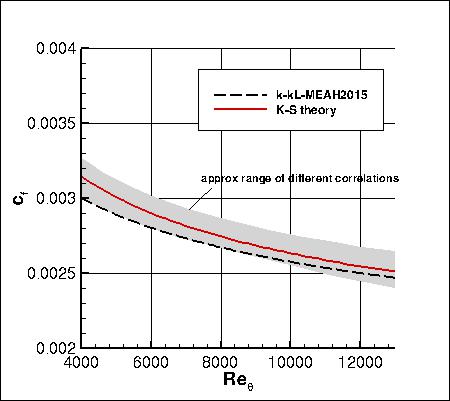

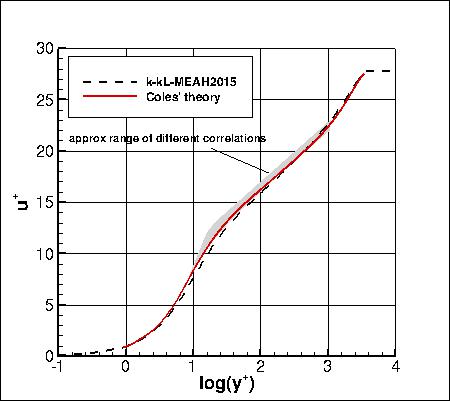

Above K-kL-MEAH2015m results are from CFL3D on the 545x385 grid; FUN3D results on same grid are almost identical. Both CFL3D and FUN3D used freestream turbulence intensity=0.039% and freestream turbulent viscosity (relative to laminar)=0.009. Please read note 5 on Notes on running CFD page. The right-hand plot is extracted from the location where Retheta=10000. Note that these are compressible code results at "essentially incompressible" conditions of M=0.2. There may be a very small influence of compressibility. The CFD postprocessed data files are given here for reference: kkl-cf_cfl3d.dat and kkl-upyp_cfl3d.dat. A typical FUN3D input file is: fun3d.nml_typical_kkl_2.

Jump to: SA Results,  SSTm Results,  SST-Vm Results,  BSLm Results,  SSG/LRR-RSM-w2012 Results,  Wilcox2006-klim-m Results,  EASMko2003-S Results,  K-e-Rt Results,  GLVY-RSM-2012 Results

Return to: Flat Plate Validation Intro Page

Return to: Turbulence Modeling Resource Home Page

Recent significant updates:
06/16/2015 - updated k-kL-MEAH2013 to k-kL-MEAH2015
